1844921 - Phoenix Contact

Description: DMCV 0,5/ 7-G1-2,54 P20THR R44 - PCB headers, nominal cross section: 0.5 mm<sup>2</sup>, color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Au, contact connection type: Pin, number of potentials: 14, number of rows: 2, number of positions: 7, number of connections: 14, product range: DMCV 0,5/..-G1-THR, pitch: 2.54 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DF

Download 1844921 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1844921 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

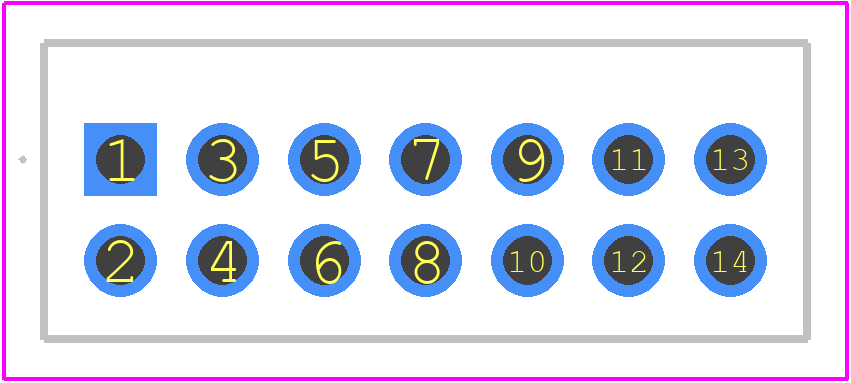

1844921 - Phoenix Contact PCB footprint - Other - Other - 1844921-3
click to zoom
3D Models
1844921 - Phoenix Contact - 3D model - Other - 1844921-3
click to zoom

1844921 Details

  • Manufacturer Part Number:

    1844921

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1844921 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1844921 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
  • The 1844921 connector has a IP20 rating, which means it's not suitable for outdoor use or exposure to water. If you need a connector for outdoor use, consider using a connector with a higher IP rating, such as IP67 or IP69K.
  • It's not recommended to use the 1844921 connector with aluminum wires, as they can cause corrosion and reduce the connector's lifespan. Instead, use copper or copper-alloy wires, which are compatible with the connector's materials.
  • The 1844921 connector has a maximum operating temperature of 125°C (257°F), according to the datasheet. However, it's recommended to derate the current carrying capacity of the connector at higher temperatures to ensure reliable operation.
