1844934 - Phoenix Contact

Description: DMCV 0,5/ 8-G1-2,54 P20THR R44 - PCB headers, nominal cross section: 0.5 mm<sup>2</sup>, color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Au, contact connection type: Pin, number of potentials: 16, number of rows: 2, number of positions: 8, number of connections: 16, product range: DMCV 0,5/..-G1-THR, pitch: 2.54 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DF

Download 1844934 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1844934 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

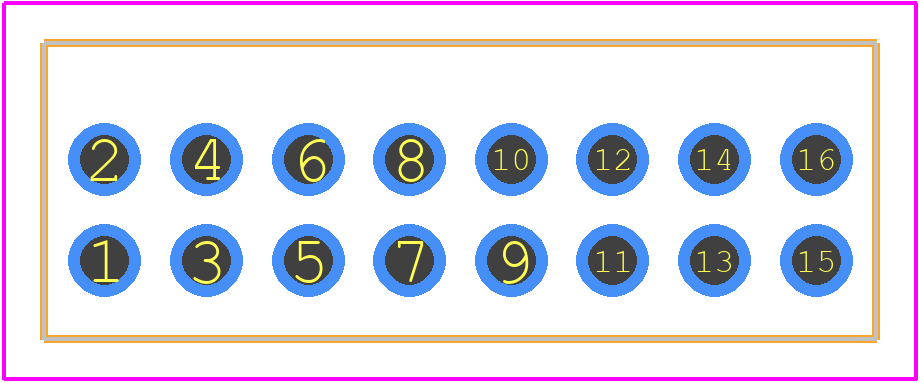

1844934 - Phoenix Contact PCB footprint - Other - Other - 1844934-3
click to zoom
3D Models
1844934 - Phoenix Contact - 3D model - Other - 1844934-3
click to zoom

1844934 Details

  • Manufacturer Part Number:

    1844934

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    8

  • Rated Current:

    6 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1844934 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1844934 is -40°C to 125°C.
  • Yes, the 1844934 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • The 1844934 is not certified for use in hazardous locations. If you need a product for hazardous locations, you should consider a different product or consult with a Phoenix Contact representative.
  • The maximum wire size that can be connected to the 1844934 is 2.5 mm² (AWG 14).
  • Yes, the 1844934 is RoHS and REACH compliant, making it suitable for use in the European Union and other regions with similar regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1844934 Overview

Use the download button to access the 1844934 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18449, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
