1844948 - Phoenix Contact

Description: MCV 1,5/18-GF-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 18, number of rows: 1, number of positions: 18, number of connections: 18, product range: MCV 1,5/..-GF, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern al

Download 1844948 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

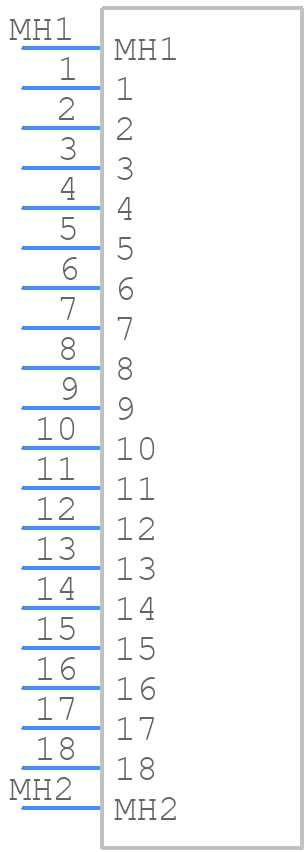

1844948 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

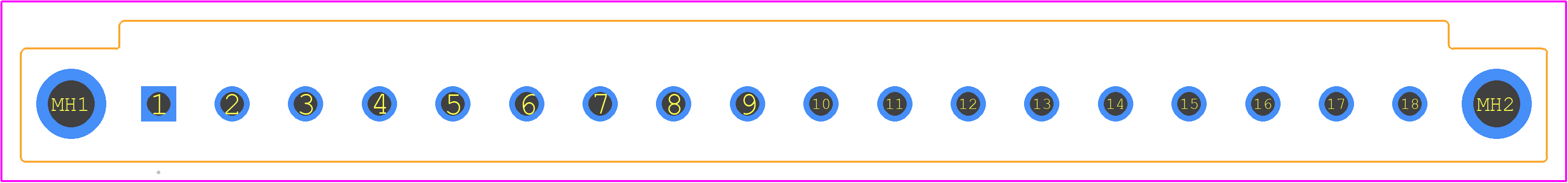

1844948 - Phoenix Contact PCB footprint - Other - Other - 1844948-3
click to zoom
3D Models
1844948 - Phoenix Contact - 3D model - Other - 1844948-3
click to zoom

1844948 Details

  • Manufacturer Part Number:

    1844948

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    PBT, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    18

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1844948 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1844948 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1844948 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, making it easy to integrate into existing systems.
  • The maximum current rating for the 1844948 is 12 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1844948 is designed to be used in harsh environments, including those with high temperatures, humidity, and vibration, making it suitable for use in industrial and automation applications.
  • The termination type for the 1844948 is screw termination, which provides a secure and reliable connection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1844948 Overview

Use the download button to access the 1844948 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18449, or try a keyword search, such as Terminals and Terminal Blocks
