1845250 - Phoenix Contact

Description: DMCV 0,5/10-G1-2,54 SMD R44 - PCB headers, nominal cross section: 0.5 mm<sup>2</sup>, color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Au, contact connection type: Pin, number of potentials: 20, number of rows: 2, number of positions: 10, number of connections: 20, product range: DMCV 0,5/..-G1-SMD, pitch: 2.54 mm, mounting: SMD soldering, pin layout: Linear pad geometry, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 0,5, Pin connector pattern alignm

Download 1845250 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1845250 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

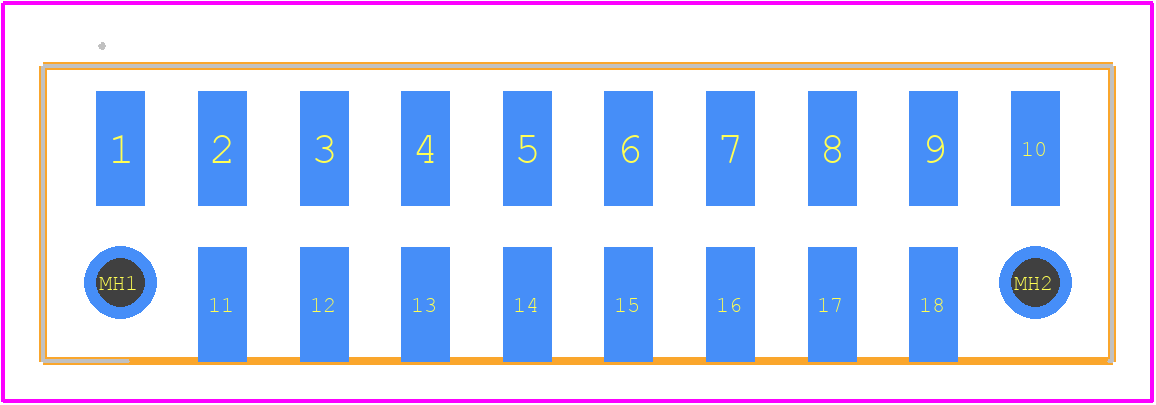

1845250 - Phoenix Contact PCB footprint - Other - Other - 1845250
click to zoom
3D Models
1845250 - Phoenix Contact - 3D model - Other - 1845250
click to zoom

1845250 Details

  • Manufacturer Part Number:

    1845250

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    20

  • Rated Current:

    6 A

  • Rated Voltage:

    32 V

  • Safety Approval:

    CB;CUL;EAC;IECEE;UL;VDE

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK
