1845344 - Phoenix Contact

Description: SPT 35/ 2-V-15,00 - Printed circuit board terminal, nominal current: 125 A, rated voltage (III/2): 1000 V, nominal cross section: 35 mm<sup>2</sup>, number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: SPT 35/..-V, pitch: 15 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5.9 mm, number of solder pins per potential: 4, type of packaging: packed

Download 1845344 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1845344 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

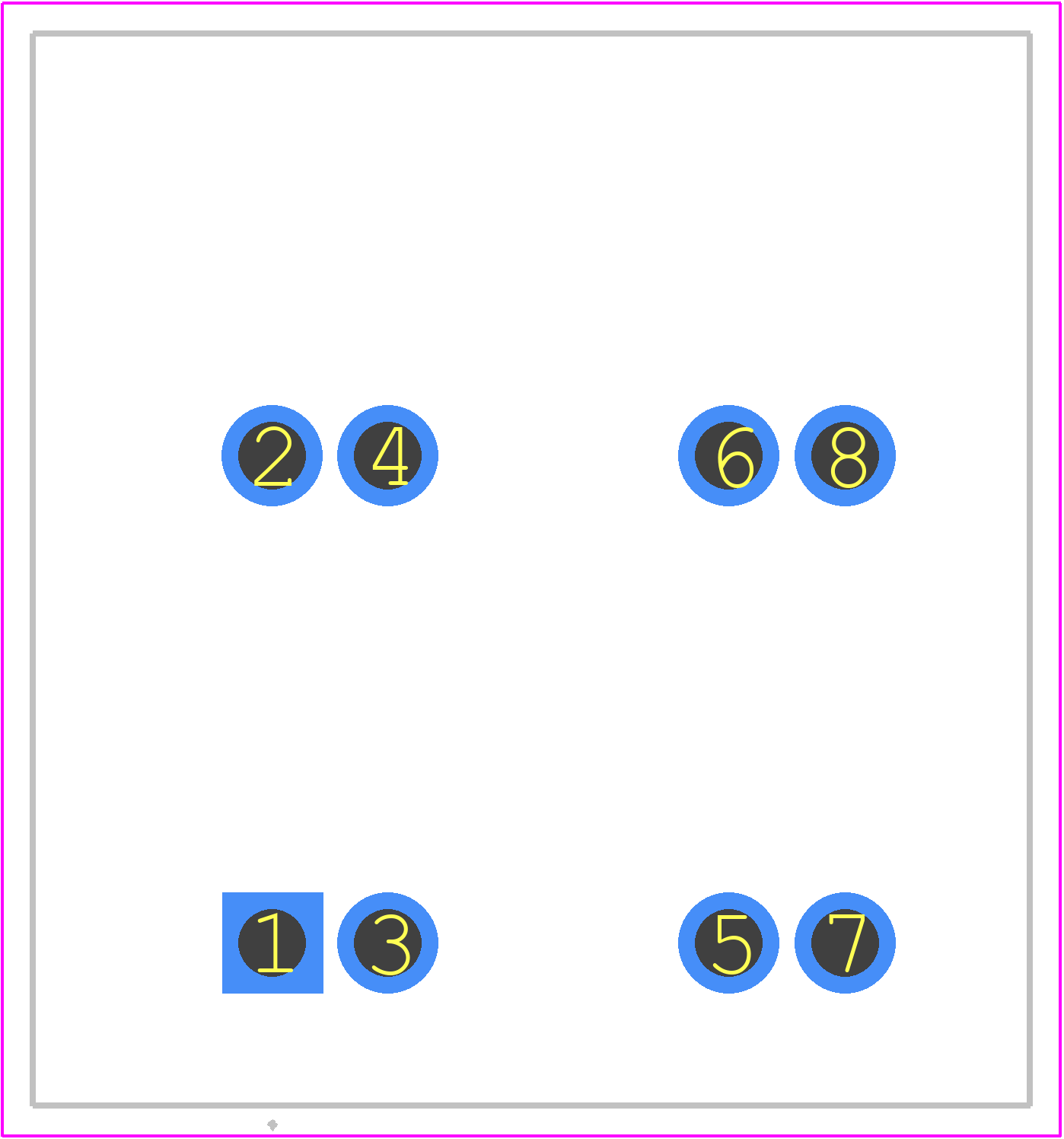

1845344 - Phoenix Contact PCB footprint - Other - Other - 1845344
click to zoom
3D Models
1845344 - Phoenix Contact - 3D model - Other - 1845344
click to zoom

1845344 Details

  • Manufacturer Part Number:

    1845344

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    PUSH-IN/SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    125 A

  • Rated Voltage:

    1000 V

  • Safety Approval:

    CB;CUL;EAC;IECEE;UL;VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    35 mm2

  • Wire Gauge:

    2 AWG
