1845345 - Phoenix Contact

Description: MDSTBVA 2,5/ 3-G-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 10 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 6, number of rows: 2, number of positions: 3, number of connections: 6, product range: MDSTBVA 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector patt

Download 1845345 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1845345 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

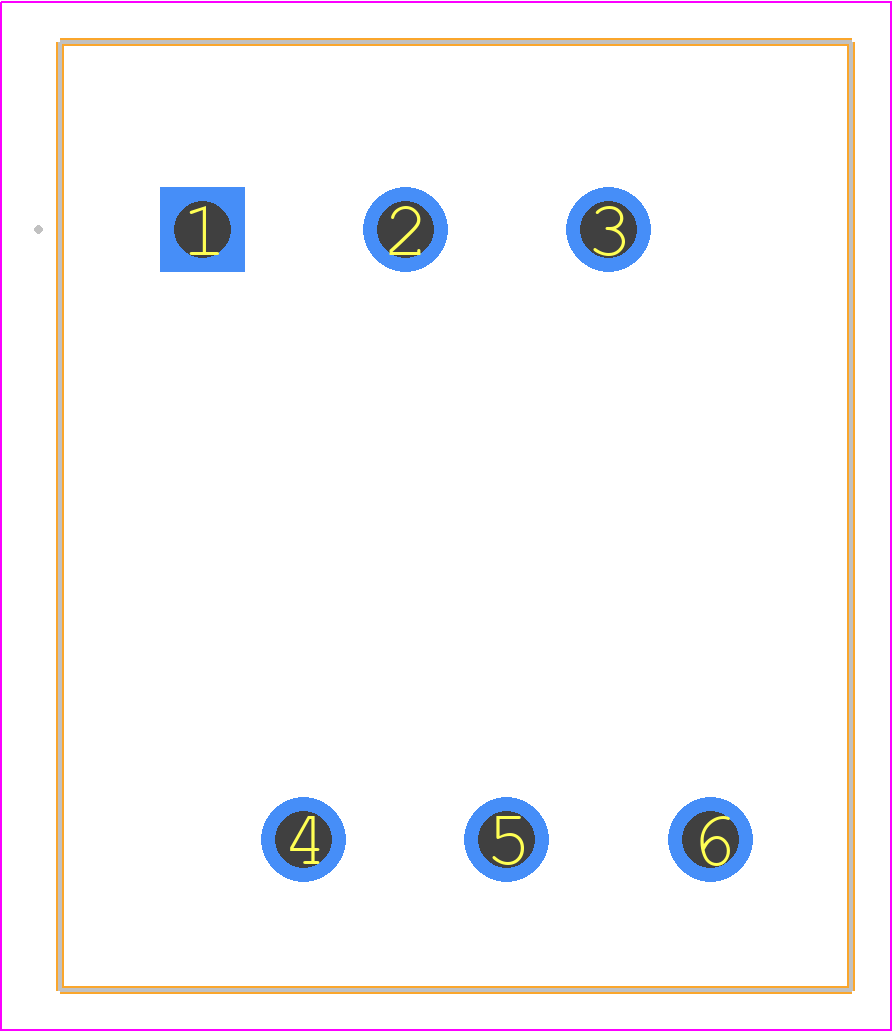

1845345 - Phoenix Contact PCB footprint - Other - Other - 1845345
click to zoom
3D Models
1845345 - Phoenix Contact - 3D model - Other - 1845345
click to zoom

1845345 Details

  • Manufacturer Part Number:

    1845345

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PBT

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    3

  • Rated Current:

    10 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1845345 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1845345 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific requirements of your application.
  • While the datasheet lists specific wire sizes, the 1845345 can accommodate a range of wire sizes. However, it's essential to consult with Phoenix Contact or a qualified engineer to ensure the connector can handle the desired wire size and meet the application's requirements.
  • The 1845345 has a IP20 rating, which means it's not designed for use in humid or wet environments. If your application requires a connector that can withstand moisture, consider using a connector with a higher IP rating, such as IP67 or IP69K.
  • The 1845345 has an operating temperature range of -40°C to 125°C. However, it's essential to consider the temperature rating of the specific application and ensure the connector meets those requirements.
