Part Image

1845552 - Phoenix Contact

Description: MDSTBV 2,5/ 9-G-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 10 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 18, number of rows: 2, number of positions: 9, number of connections: 18, product range: MDSTBV 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector patt

Download 1845552 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1845552 - Phoenix Contact - PCB symbol
click to zoom

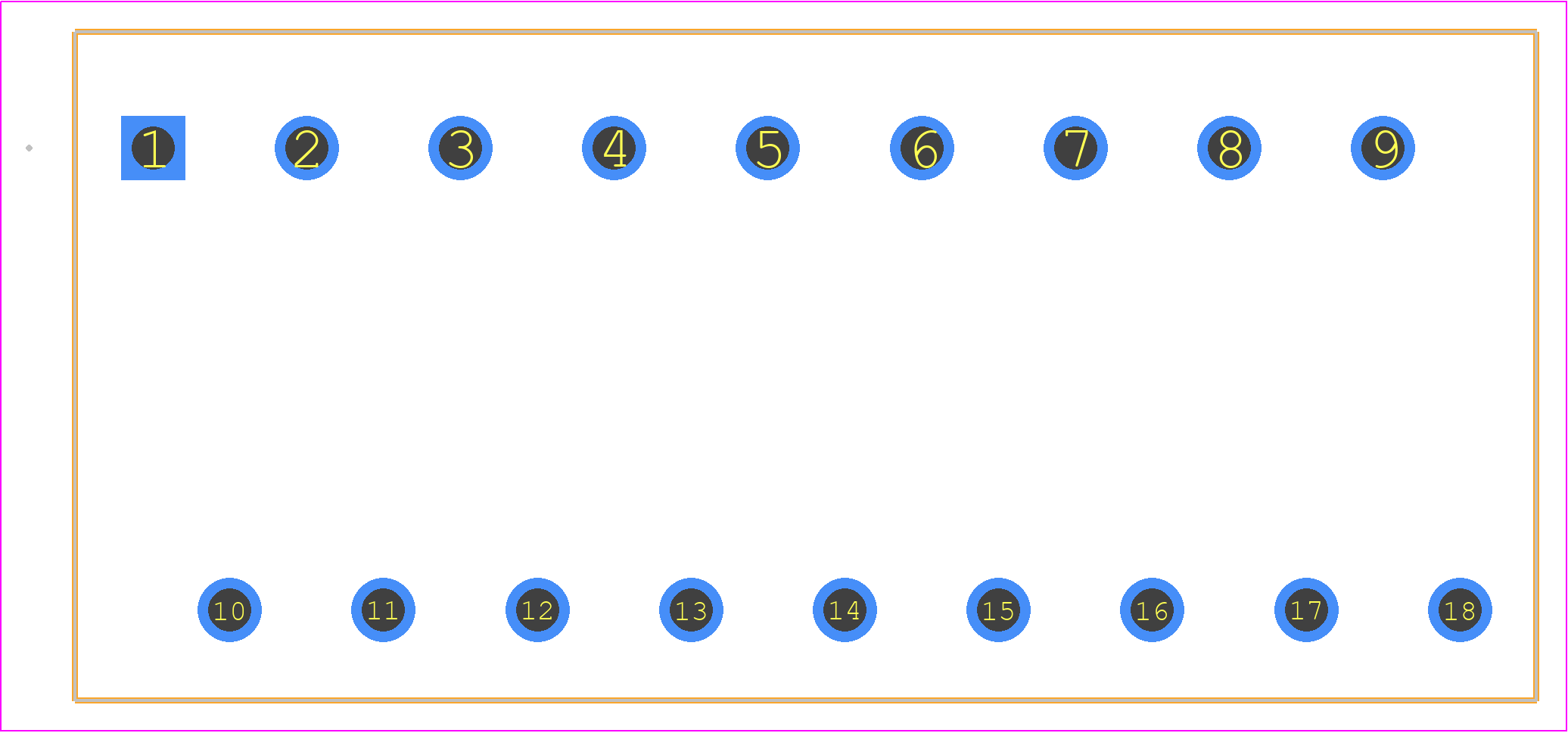

PCB Footprints
1845552 - Phoenix Contact PCB footprint - Other - Other - 1845552
click to zoom
3D Models
1845552 - Phoenix Contact - 3D model - Other - 1845552
click to zoom

1845552 Details

  • Manufacturer Part Number:

    1845552

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.49

  • Additional Feature:

    PBT

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    10 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL; CSA

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1845552 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1845552 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific requirements of your application.
  • Yes, the 1845552 is UL recognized and meets the requirements of UL 1977 and UL 2238.
  • The maximum operating temperature of the 1845552 is 125°C (257°F), with a maximum storage temperature of 150°C (302°F).
  • The 1845552 has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not protected against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or additional protection measures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1845552 Overview

Use the download button to access the 1845552 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18455, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
