Part Image

1845691 - Phoenix Contact

Description: MDSTBV 2,5/ 8-GF-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 10 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 16, number of rows: 2, number of positions: 8, number of connections: 16, product range: MDSTBV 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pa

Download 1845691 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

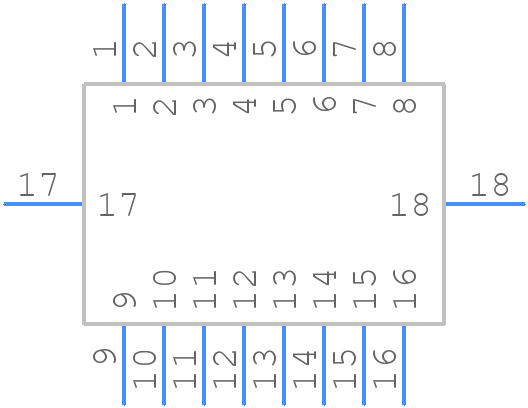

Symbol
1845691 - Phoenix Contact - PCB symbol
click to zoom

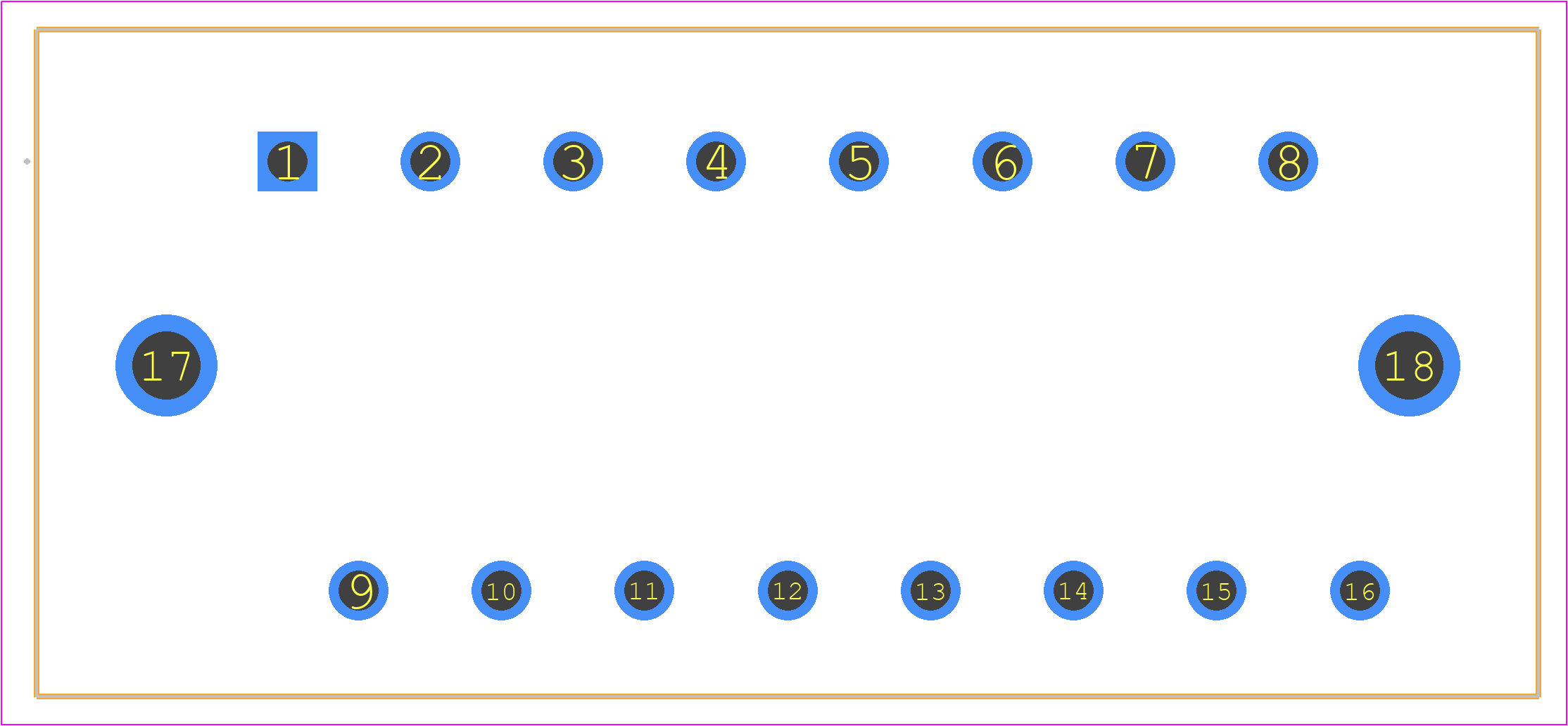

PCB Footprints
1845691 - Phoenix Contact PCB footprint - Other - Other - 1845691
click to zoom
3D Models
1845691 - Phoenix Contact - 3D model - Other - 1845691
click to zoom

1845691 Details

  • Manufacturer Part Number:

    1845691

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PBT

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1845691 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1845691 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1845691 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, making it easy to integrate into existing systems.
  • The maximum current rating for the 1845691 is 12 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1845691 is designed to be used in harsh environments, including those with high temperatures, humidity, and vibration, making it suitable for use in industrial and automation applications.
  • The 1845691 has a screw termination type, making it easy to connect and disconnect wires as needed.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1845691 Overview

Use the download button to access the 1845691 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18456, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
