1846467 - Phoenix Contact

Description: MDSTB 2,5/12-G - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 10 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 24, number of rows: 2, number of positions: 12, number of connections: 24, product range: MDSTB 2,5/..-G, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alig

Download 1846467 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

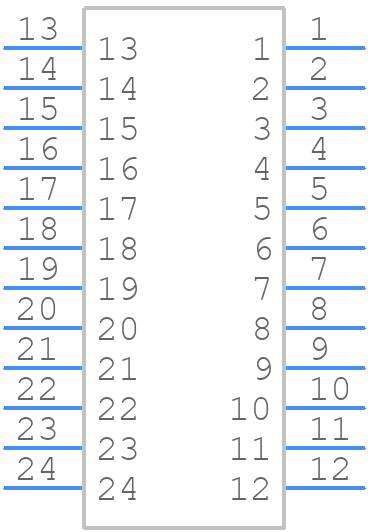

1846467 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

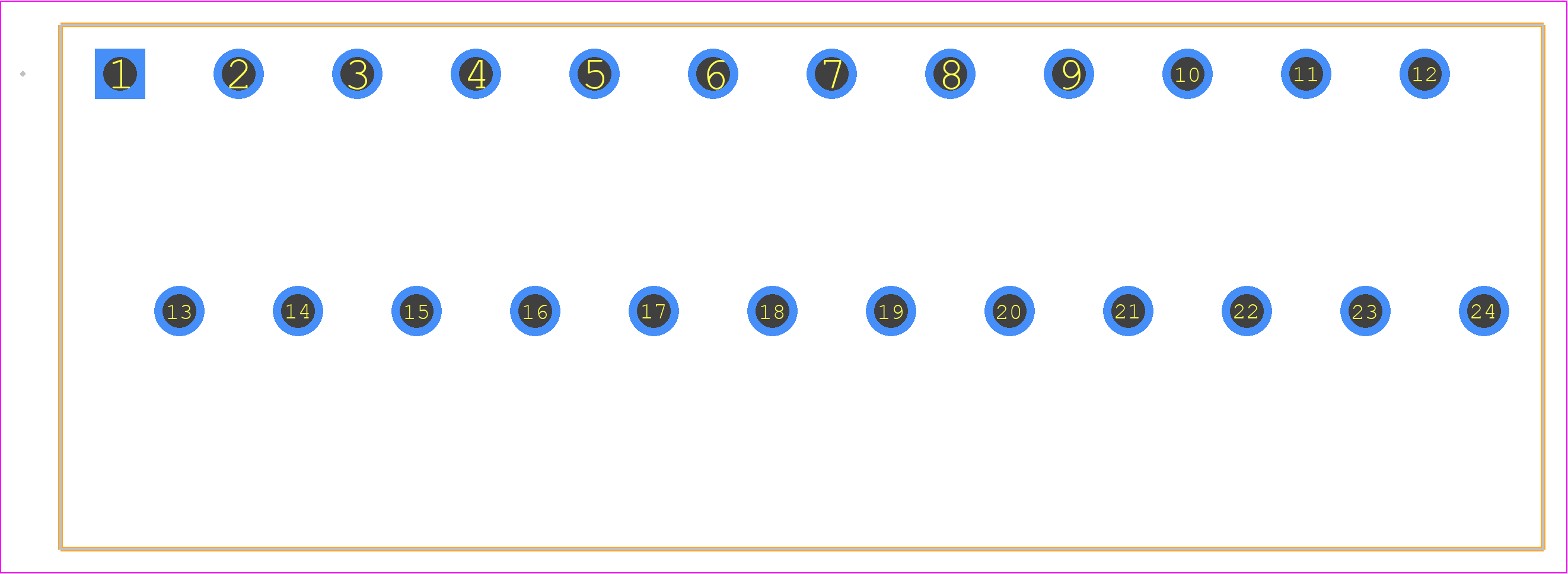

1846467 - Phoenix Contact PCB footprint - Other - Other - 1846467
click to zoom
3D Models
1846467 - Phoenix Contact - 3D model - Other - 1846467
click to zoom

1846467 Details

  • Manufacturer Part Number:

    1846467

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.49

  • Additional Feature:

    PBT, 94V-0

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    10 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1846467 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1846467 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • Yes, the 1846467 has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • The 1846467 can operate in temperatures ranging from -40°C to +125°C, making it suitable for use in a wide range of applications.
  • Yes, the 1846467 is suitable for use with aluminum wires, but it's recommended to use a wire with a minimum cross-section of 0.5 mm² to ensure reliable connections.
