1848684 - Phoenix Contact

Description: SDDC 1,5/ 6-PV-3,5 - PCB direct plug, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, number of potentials: 12, number of rows: 2, number of positions: 6, number of connections: 12, product range: SDDC 1,5/..-PV, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: SKEDD - Direct plug-in technology, conductor/PCB connection direction: 90 °, pin layout: Linear double pinning, plug-in system: SKEDD, locking: Sn

Download 1848684 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1848684 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

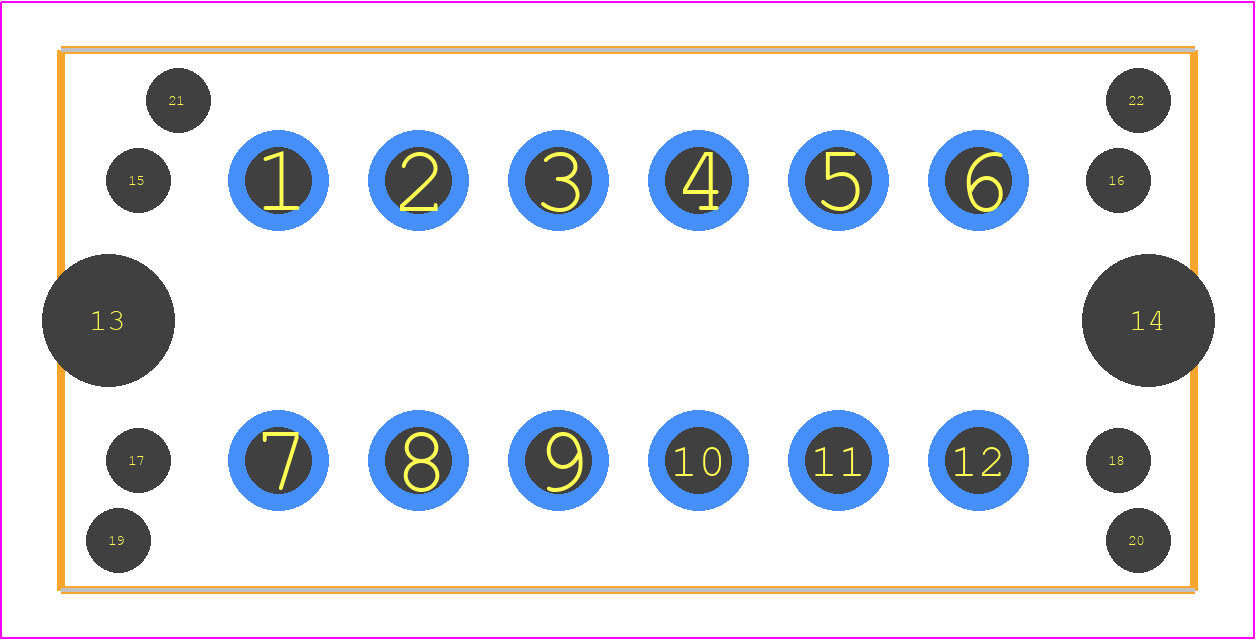

1848684 - Phoenix Contact PCB footprint - Other - Other - 1848684
click to zoom
3D Models
1848684 - Phoenix Contact - 3D model - Other - 1848684
click to zoom

1848684 Details

  • Manufacturer Part Number:

    1848684

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1848684 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1848684 is -40°C to 125°C.
  • Yes, the 1848684 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • Yes, the 1848684 is certified for use in hazardous locations, including Class I, Division 2 and Zone 2 areas.
  • The maximum wire size that can be connected to the 1848684 is 2.5 mm² (AWG 14).
  • Yes, the 1848684 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.
