1848723 - Phoenix Contact

Description: SDDC 1,5/10-PV-3,5 - PCB direct plug, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, number of potentials: 20, number of rows: 2, number of positions: 10, number of connections: 20, product range: SDDC 1,5/..-PV, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: SKEDD - Direct plug-in technology, conductor/PCB connection direction: 90 °, pin layout: Linear double pinning, plug-in system: SKEDD, locking: S

Download 1848723 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1848723 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

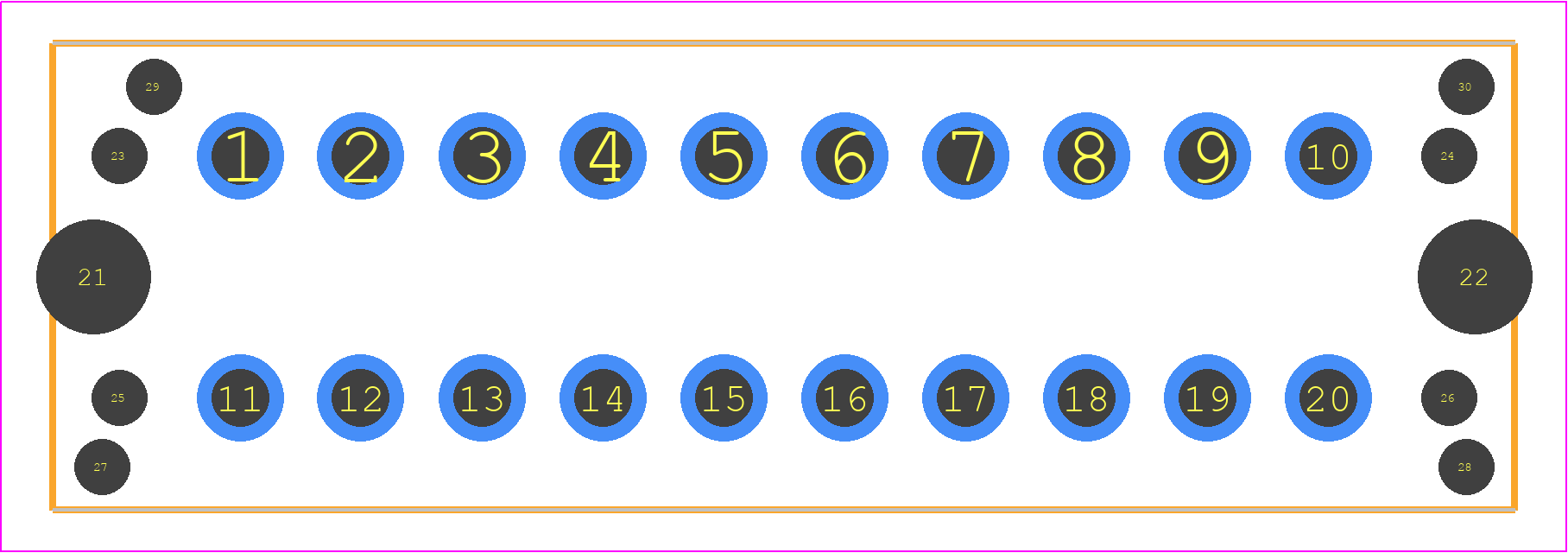

1848723 - Phoenix Contact PCB footprint - Other - Other - 1848723
click to zoom
3D Models
1848723 - Phoenix Contact - 3D model - Other - 1848723
click to zoom

1848723 Details

  • Manufacturer Part Number:

    1848723

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1848723 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1848723 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific requirements of your application.
  • Yes, the 1848723 is UL recognized and meets the requirements of UL 1977 and UL 2238.
  • The maximum operating temperature of the 1848723 is 125°C (257°F), with a maximum storage temperature of 150°C (302°F).
  • The 1848723 has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. If you need a connector for a humid or wet environment, consider using a connector with a higher IP rating, such as IP67 or IP69K.
