1848781 - Phoenix Contact

Description: SDDC 1,5/16-PV-3,5 - PCB direct plug, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, number of potentials: 32, number of rows: 2, number of positions: 16, number of connections: 32, product range: SDDC 1,5/..-PV, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: SKEDD - Direct plug-in technology, conductor/PCB connection direction: 90 °, pin layout: Linear double pinning, plug-in system: SKEDD, locking: S

Download 1848781 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

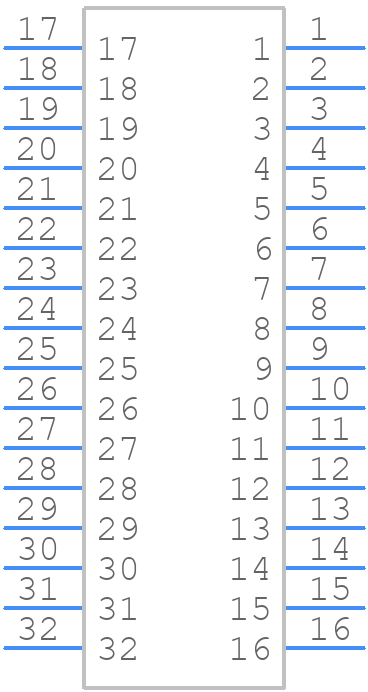

1848781 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

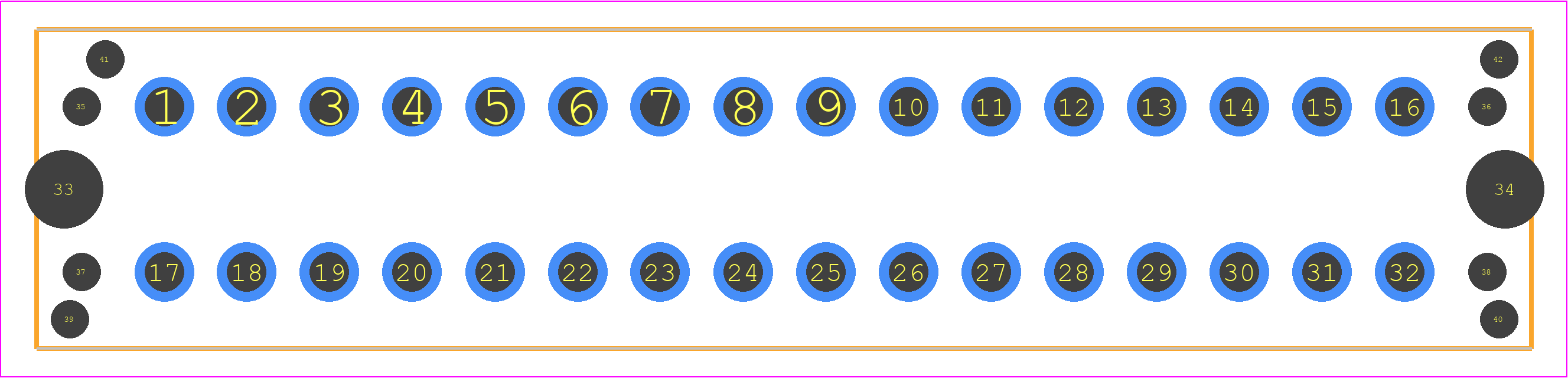

1848781 - Phoenix Contact PCB footprint - Other - Other - 1848781
click to zoom
3D Models
1848781 - Phoenix Contact - 3D model - Other - 1848781
click to zoom

1848781 Details

  • Manufacturer Part Number:

    1848781

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1848781 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1848781 is -40°C to 125°C, according to Phoenix Contact's documentation.
  • Yes, the 1848781 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
  • The recommended torque for the screw terminals on the 1848781 is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1848781 is designed to withstand high-vibration environments, with a vibration resistance of up to 10 g (according to IEC 60068-2-6).
  • The 1848781 is not intended for use in hazardous locations, such as explosive atmospheres. It does not have any specific certifications for hazardous locations, such as ATEX or IECEx.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1848781 Overview

Use the download button to access the 1848781 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18487, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
