1853308 - Phoenix Contact

Description: MSTB 2,5/ 5-GF-5,08 ABGY AU - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: agate gray, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Au, contact connection type: Pin, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: MSTB 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin conn

Download 1853308 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1853308 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

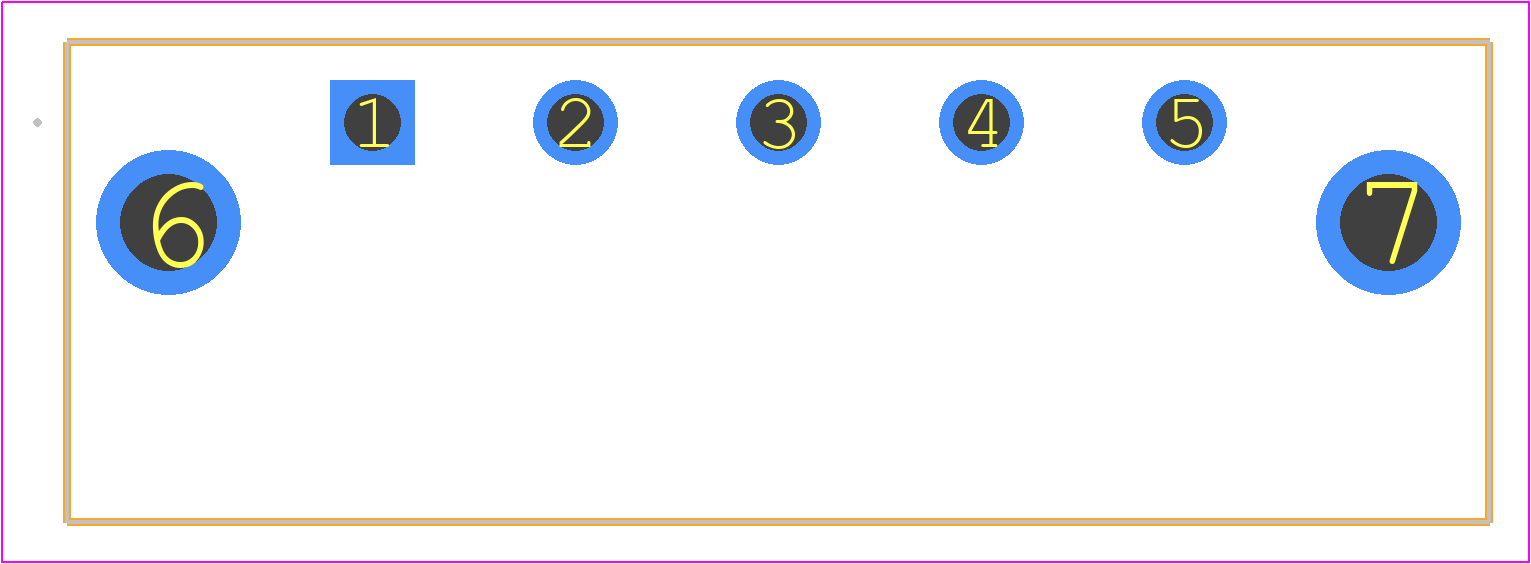

1853308 - Phoenix Contact PCB footprint - Other - Other - 1853308
click to zoom
3D Models
1853308 - Phoenix Contact - 3D model - Other - 1853308
click to zoom

1853308 Details

  • Manufacturer Part Number:

    1853308

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.54

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1853308 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1853308 is -40°C to 125°C.
  • Yes, the 1853308 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • Yes, the 1853308 is certified for use in hazardous locations, including Class I, Division 2 and Zone 2 areas.
  • The 1853308 can accommodate wire sizes up to 2.5 mm² (14 AWG).
  • Yes, the 1853308 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.
