185534-3 - TE Connectivity

Description: Body Features: Connector & Keying Code 1 | Primary Product Color Yellow | Configuration Features: Number of Sections 1 | Number of Signal Positions 26 | Number of Rows 2 | Number of Positions 26 | PCB Mount Orientation Horizontal | Contact Features: Mating Tab Width .63 MM | Contact Size .63mm | Contact Type Tab | Mating Tab Width .025 INCH | Mating Tab Thickness .025 INCH | Mating Tab Thickness .63 MM | Contact Mating Area Plating Material Tin | Dimensions: Connector Length 1.898 INCH | Connector Width 27.

Download 185534-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
185534-3 - TE Connectivity - PCB symbol
click to zoom

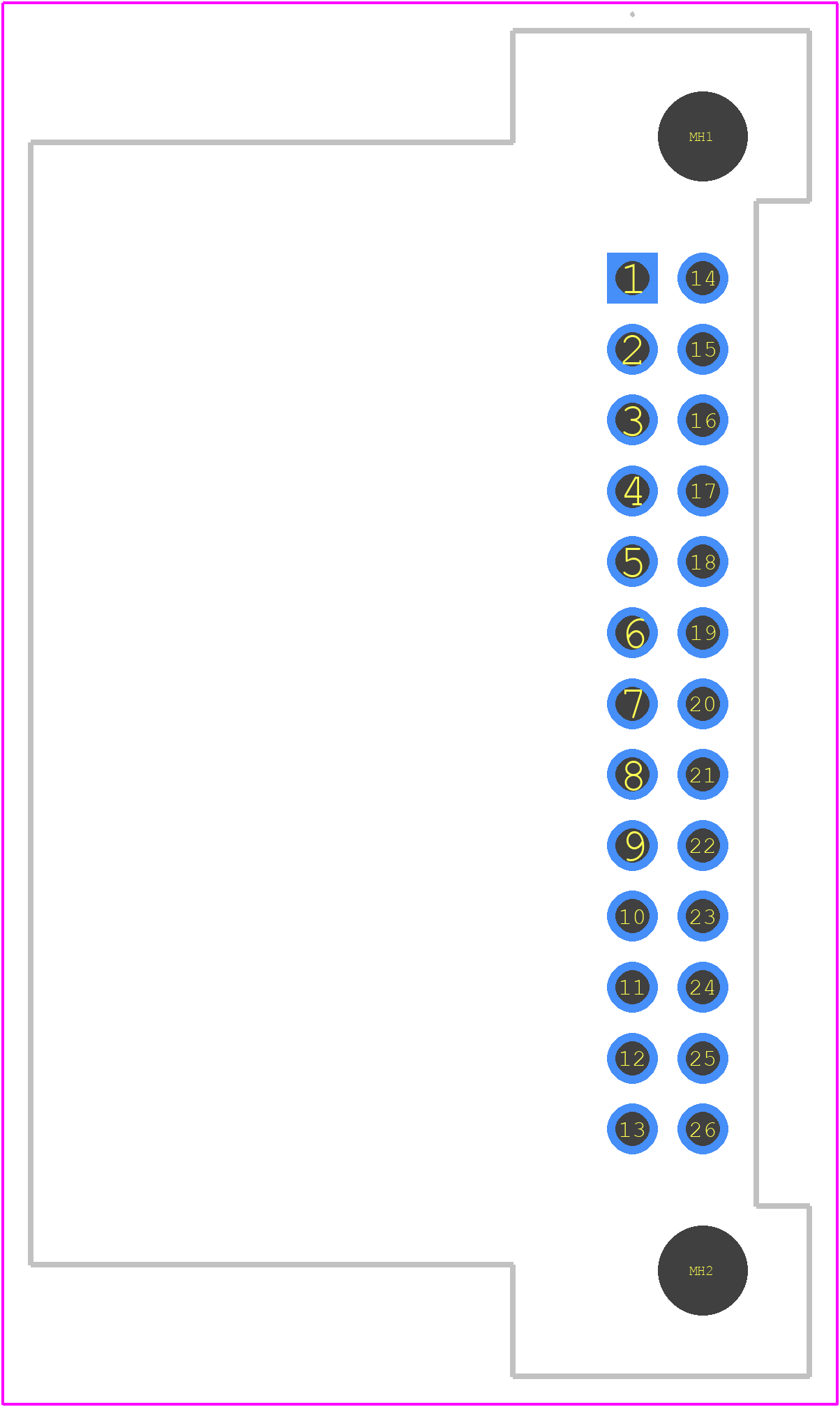

PCB Footprints
185534-3 - TE Connectivity PCB footprint - Other - Other - 185534-3-2
click to zoom
3D Models
185534-3 - TE Connectivity - 3D model - Other - 185534-3-2
click to zoom

185534-3 Details

  • Manufacturer Part Number:

    185534-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    32 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    1.098 inch

  • Body Depth:

    1.098 inch

  • Body Length:

    1.898 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94-HB

185534-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 185534-3 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 185534-3 connector has a IP67 rating, which means it can withstand temporary immersion in water and is protected against dust and other environmental factors. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 185534-3 connector. However, it's crucial to ensure the wire size is compatible with the connector's terminal design and that the wire insulation is not damaged during installation.
  • Yes, TE Connectivity recommends using their proprietary crimping tool (part number 185534-1) to ensure reliable connections and prevent damage to the contacts. Using other tools may void the warranty or compromise the connector's performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

185534-3 Overview

Use the download button to access the 185534-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18553, or try a keyword search, such as Combination Line Connectors
