185890-1 - TE Connectivity

Description: Body Features: Connector & Keying Code 1 | Primary Product Color Yellow | Configuration Features: PCB Mount Orientation Horizontal | Number of Positions 26 | Number of Signal Positions 26 | Number of Sections 1 | Number of Rows 2 | Contact Features: Contact Type Tab | Mating Tab Thickness .63 MM | Contact Size .63mm | Contact Mating Area Plating Material Tin | Mating Tab Thickness .025 INCH | Mating Tab Width .025 INCH | Mating Tab Width .63 MM | Dimensions: Connector Length 48.2 MM | Connector Width 1.098

Download 185890-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

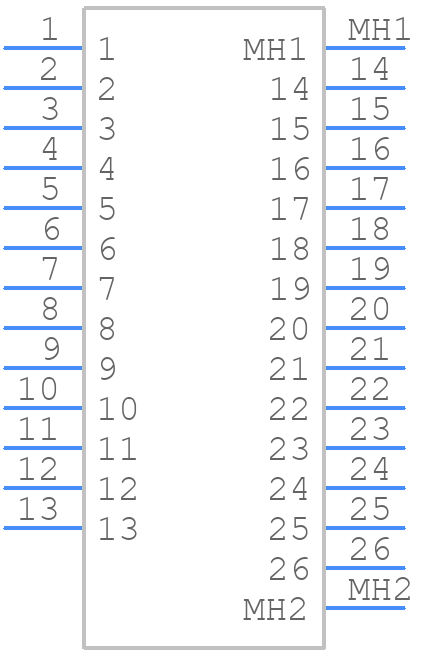

Symbol
185890-1 - TE Connectivity - PCB symbol
click to zoom

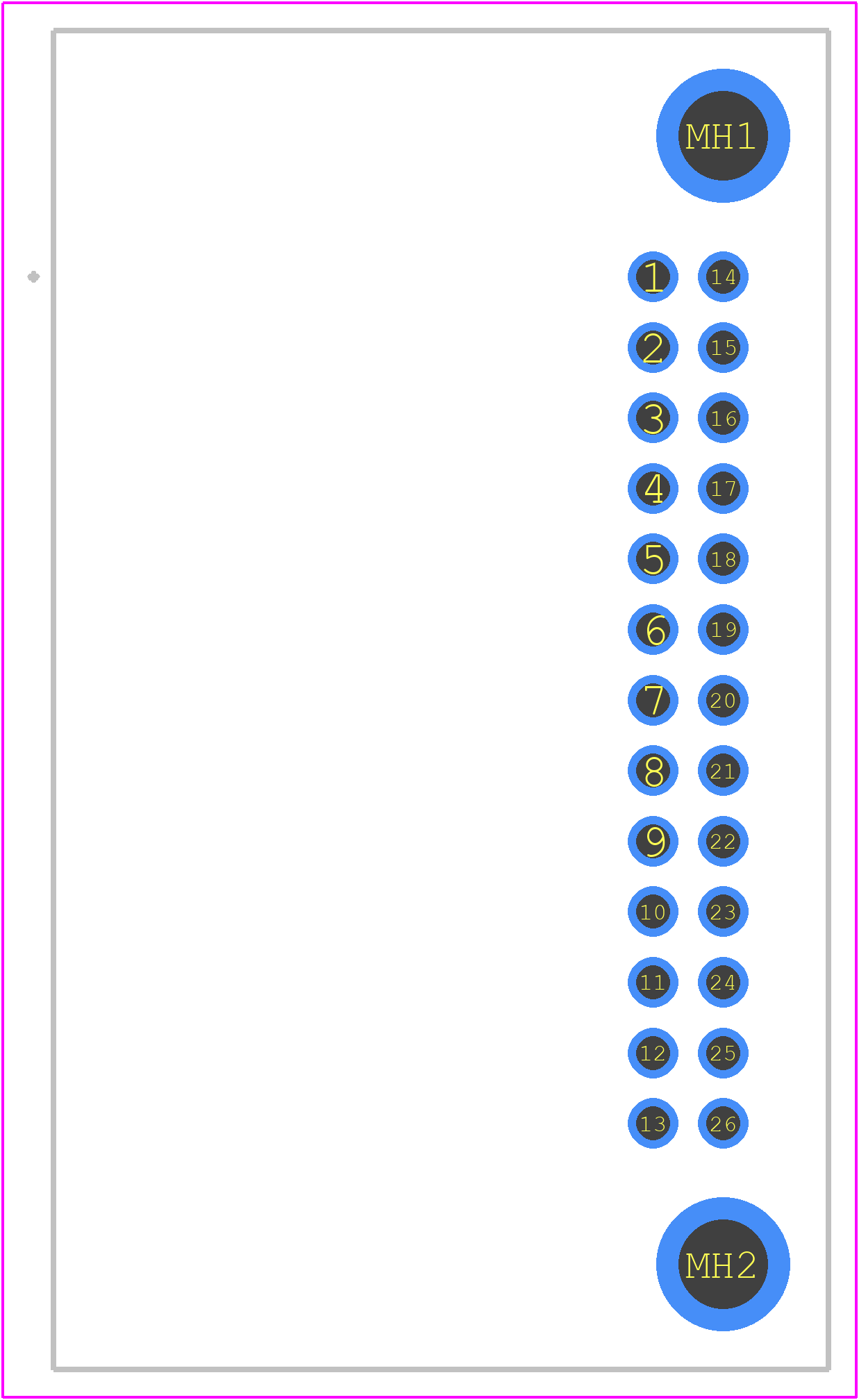

PCB Footprints
185890-1 - TE Connectivity PCB footprint - Other - Other - 185890-1-4
click to zoom
3D Models
185890-1 - TE Connectivity - 3D model - Other - 185890-1-4
click to zoom

185890-1 Details

  • Manufacturer Part Number:

    185890-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    34 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Body Breadth:

    1.098 inch

  • Body Length:

    1.898 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

185890-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 185890-1 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and aerospace.
  • Yes, the 185890-1 connector is designed to operate in harsh environments, including exposure to moisture, dust, and extreme temperatures (-40°C to 125°C).
  • The maximum current rating for the 185890-1 connector is 3A per contact, but it's recommended to derate the current based on the specific application and environmental conditions.
  • The 185890-1 connector is suitable for both power and signal transmission applications, including high-speed data transmission and low-voltage power distribution.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

185890-1 Overview

Use the download button to access the 185890-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18589, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
