1858992 - Phoenix Contact

Description: GIC 2,5/ 3-GF-7,62 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Socket, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: GIC 2,5/..-GF, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 2, plug-in system: COMBICON MSTB 2,5, Pin connector pattern

Download 1858992 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1858992 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

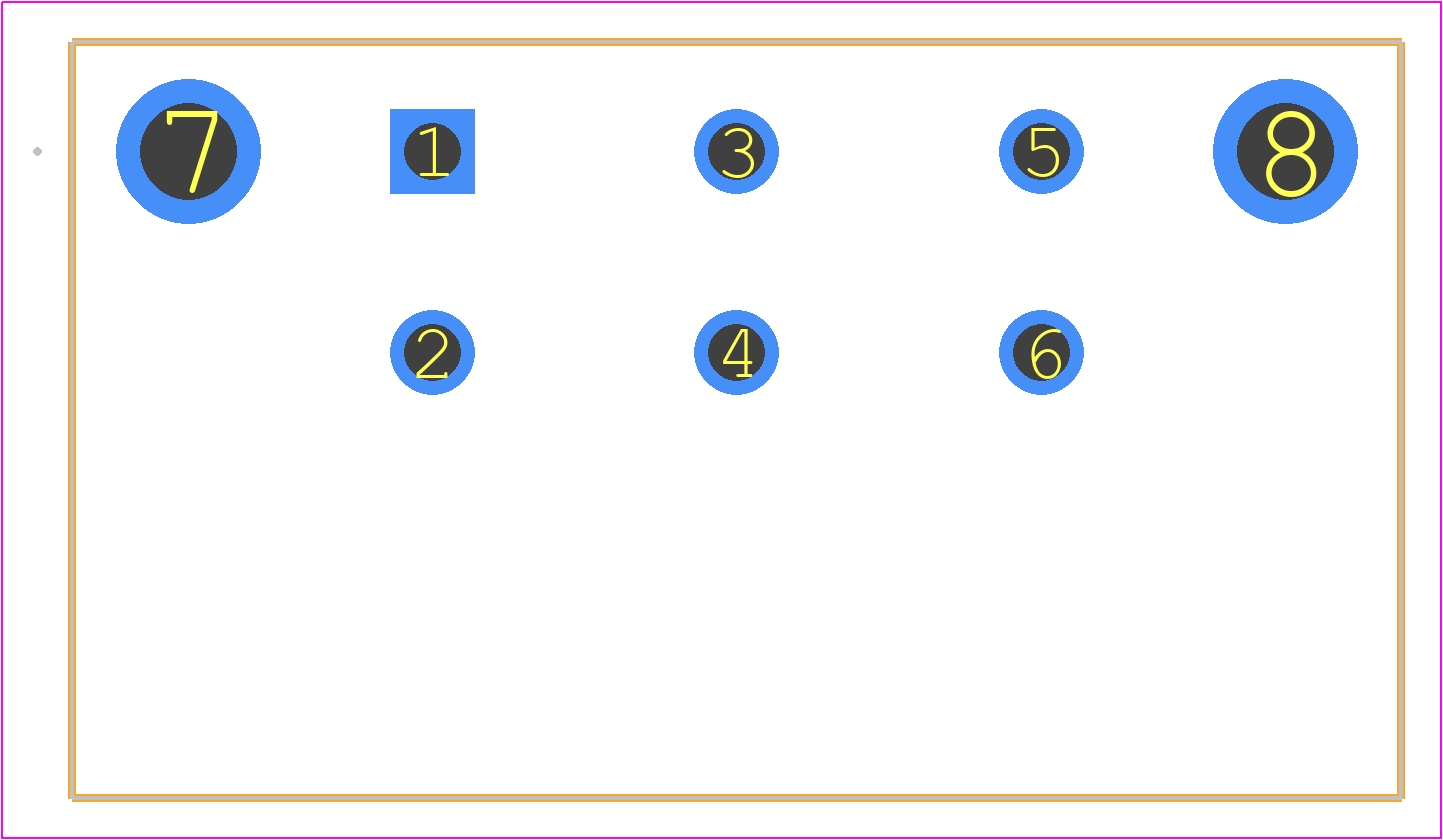

1858992 - Phoenix Contact PCB footprint - Other - Other - 1858992
click to zoom
3D Models
1858992 - Phoenix Contact - 3D model - Other - 1858992
click to zoom

1858992 Details

  • Manufacturer Part Number:

    1858992

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    12 A

  • Rated Voltage:

    400 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1858992 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1858992 connector is designed to withstand high vibrations and is suitable for use in applications with intense mechanical stress, such as in industrial automation or transportation systems.
  • The connector's housing and insulating materials are resistant to many chemicals and cleaning agents, but it's recommended to check the compatibility of specific substances with Phoenix Contact's materials before use.
  • The 1858992 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water. However, it's recommended to use additional protection measures, such as conformal coating or potting, for extended outdoor or humid environment use.
  • The 1858992 connector is designed to operate in temperatures ranging from -40°C to 125°C, making it suitable for use in a wide range of applications.
