1859182 footprint, schematic symbol and 3D model by Bloggs Bits

1859182 - Bloggs Bits

Description: PCB header, nominal cross section: 2.5 mm?, color: green, nominal current: 12 A, rated voltage (III/2): 630 V, contact surface: Tin, type of contact: Female connector, Number of potentials: 11, Number of rows: 1, Number of positions per row: 11, number of connections: 11, product range: GICV 2,5/..-GF, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.6 mm, Stecksystem: CLASSIC COMBICON, Locking: Screw locking, type of packaging: packed in cardboard

Download 1859182 Model

Schematic
symbols

PCB
footprints

3D
models

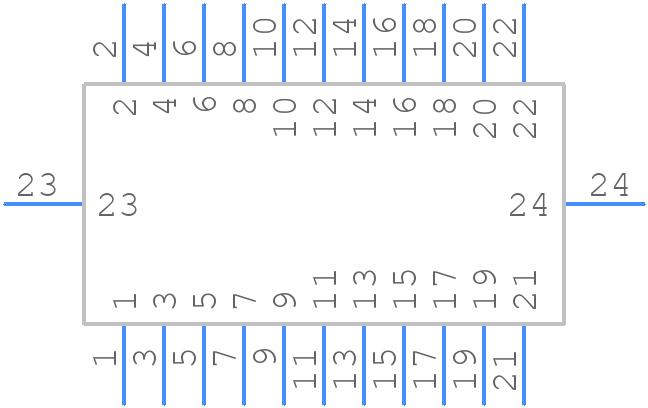

Symbol

click to zoom

PCB Footprints

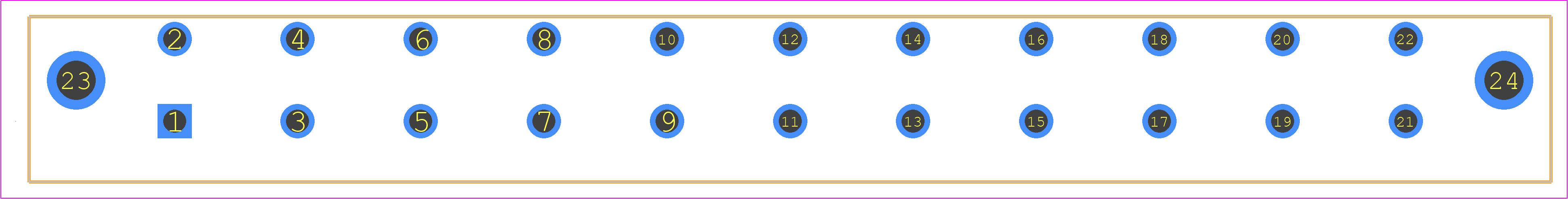

1859182 - Bloggs Bits PCB footprint - Other - Other - 1859182

click to zoom

3D Models

1859182 - Bloggs Bits - 3D model - Other - 1859182

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1859182
Part Number 1859182
Manufacturer Bloggs Bits
Pin Count 24
Part Category Connector
Package Category Other
Footprint Name Other - 1859182
Released Date Dec 21, 2021
Last Modified Date Oct 16, 2024 11:17 AM UTC
Pinout / Pin List Click Here (Member Only)

1859182 Details

Manufacturer Part Number:
1859182
Manufacturer:
(UNAVAILABLE)

Trust Checks

Expert Contribution

System Verified

Community Approved

1859182 Overview

Use the download button to access the 1859182 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 18591, or try a keyword search, such as Terminals and Terminal Blocks
