Part Image

1862000 - Phoenix Contact

Description: SPTAF 1/ 9-3,5-IL - Printed circuit board terminal, nominal current: 16 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 9, number of rows: 1, number of positions per row: 9, product range: SPTAF 1/..-IL, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.6 mm, number of solder pins per potential: 2, type of packaging: pack

Download 1862000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

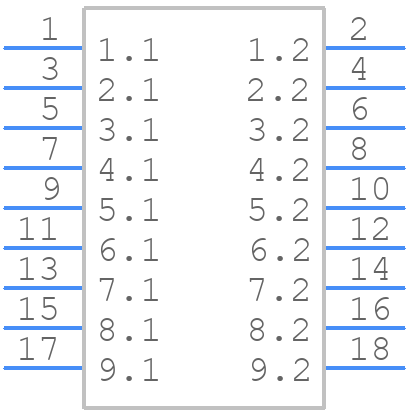

Symbol
1862000 - Phoenix Contact - PCB symbol
click to zoom

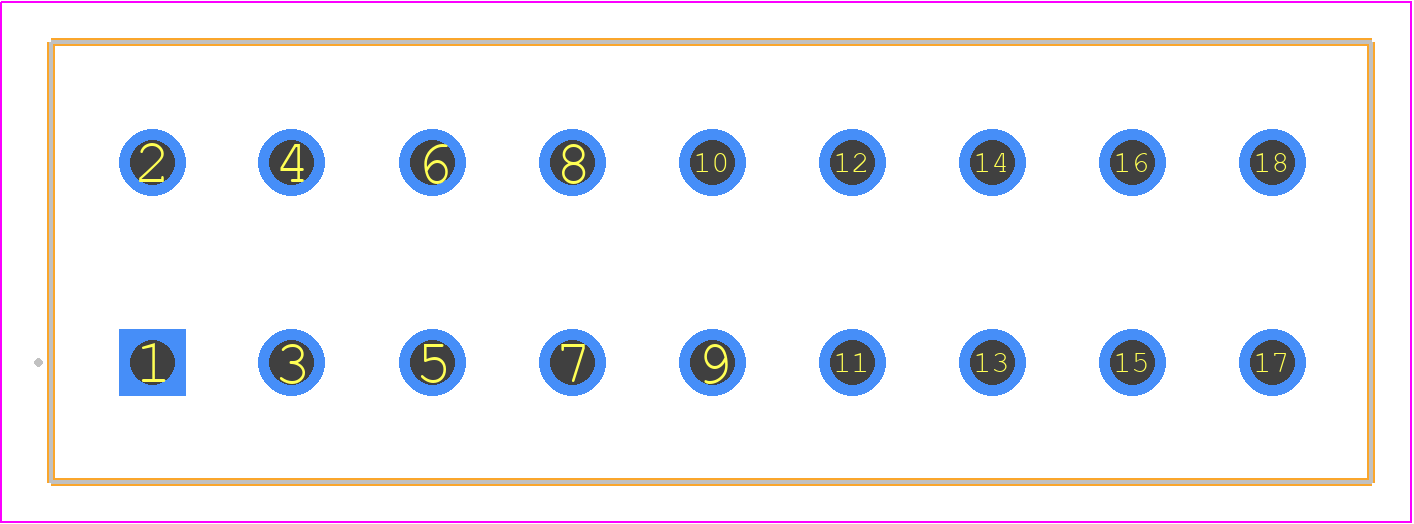

PCB Footprints
1862000 - Phoenix Contact PCB footprint - Other - Other - 1862000
click to zoom
3D Models
1862000 - Phoenix Contact - 3D model - Other - 1862000
click to zoom

1862000 Details

  • Manufacturer Part Number:

    1862000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1862000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1862000 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1862000 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and interfaces, making it easy to integrate into existing systems.
  • The maximum current rating for the 1862000 is 12 A per pin, making it suitable for use in applications where high currents are required.
  • Yes, the 1862000 is designed to be used in harsh environments, including those with high temperatures, humidity, and vibration, making it suitable for use in industrial and outdoor applications.
  • The 1862000 has an IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in applications where exposure to moisture is a concern.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1862000 Overview

Use the download button to access the 1862000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18620, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
