1862149 - Phoenix Contact

Description: SPTAF 1/12-3,5-EL - Printed circuit board terminal, nominal current: 16 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 12, number of rows: 1, number of positions per row: 12, product range: SPTAF 1/..-EL, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.6 mm, number of solder pins per potential: 2, type of packaging: pa

Download 1862149 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

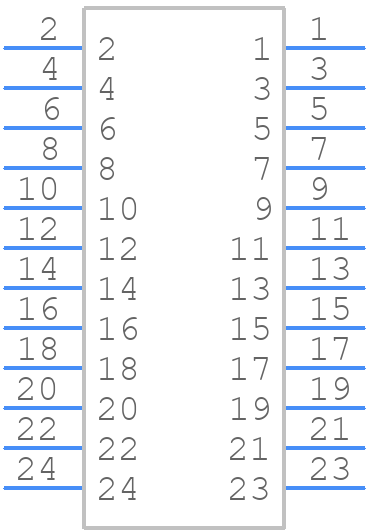

1862149 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

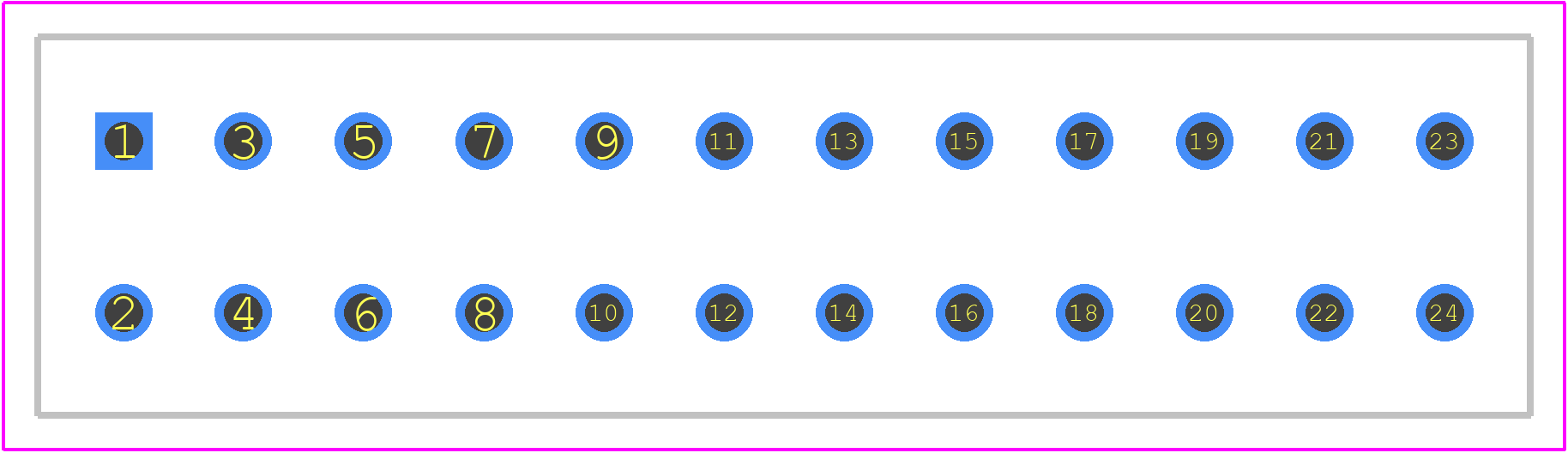

1862149 - Phoenix Contact PCB footprint - Other - Other - 1862149-1
click to zoom
3D Models
1862149 - Phoenix Contact - 3D model - Other - 1862149-1
click to zoom

1862149 Details

  • Manufacturer Part Number:

    1862149

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1862149 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1862149 is -40°C to 125°C.
  • Yes, the 1862149 is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • The 1862149 is not certified for use in hazardous locations. If you need a product for hazardous locations, you should consider a different product or consult with Phoenix Contact for a custom solution.
  • The maximum wire size that can be connected to the 1862149 is 2.5 mm² (AWG 14).
  • Yes, the 1862149 is RoHS and REACH compliant, making it suitable for use in the European Union and other regions with similar regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1862149 Overview

Use the download button to access the 1862149 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18621, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
