1862259 - Phoenix Contact

Description: SPTAF 1/15-3,5-EL - Printed circuit board terminal, nominal current: 16 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 15, number of rows: 1, number of positions per row: 15, product range: SPTAF 1/..-EL, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.6 mm, number of solder pins per potential: 2, type of packaging: pa

Download 1862259 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

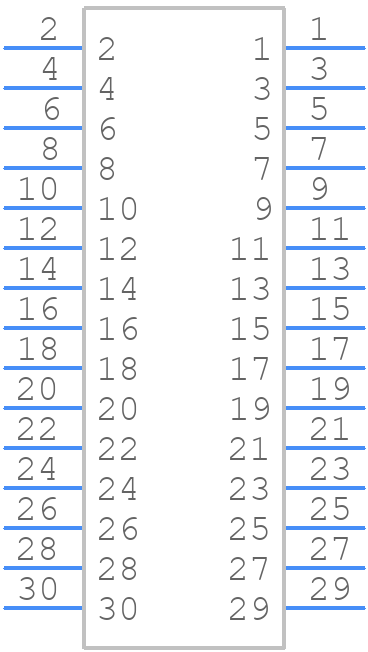

Symbol
1862259 - Phoenix Contact - PCB symbol
click to zoom

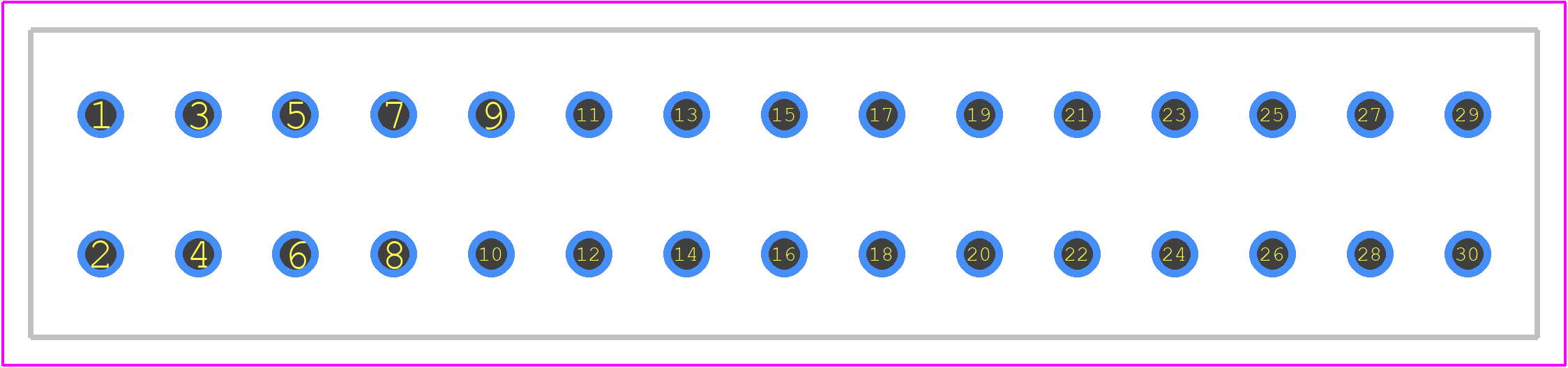

PCB Footprints
1862259 - Phoenix Contact PCB footprint - Other - Other - 1862259-4
click to zoom
3D Models
1862259 - Phoenix Contact - 3D model - Other - 1862259-4
click to zoom

1862259 Details

  • Manufacturer Part Number:

    1862259

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    PUSH-IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    15

  • Rated Current:

    16 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1862259 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Phoenix Contact documentation.
  • The 1862259 product is not certified for use in hazardous locations. If you need a product for hazardous locations, consider Phoenix Contact's ATEX or IECEx certified products.
  • The operating temperature range for this connector is -40°C to +125°C, as specified in the datasheet.
  • Yes, the 1862259 product is RoHS and REACH compliant, meeting the European Union's directives for restricted substances.
  • While the product is suitable for industrial applications, it's not specifically designed for high-vibration applications. If you need a product for high-vibration environments, consider Phoenix Contact's vibration-resistant products.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1862259 Overview

Use the download button to access the 1862259 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18622, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
