1862506 Frequently Asked Questions (FAQs)

• What is the recommended torque for screwing the connector onto a PCB?
  The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the Phoenix Contact application notes for more detailed guidance.
• Can I use this connector in high-vibration or high-shock environments?
  Yes, the 1862506 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and screwing to prevent damage. Phoenix Contact provides guidelines for vibration and shock testing in their documentation.
• Is the connector suitable for use in harsh environments, such as high temperatures or humidities?
  The 1862506 connector is rated for operating temperatures between -40°C and 125°C and can withstand humidities up to 95%. However, it's essential to consider the specific environmental conditions of your application and consult Phoenix Contact's documentation for more information.
• Can I use this connector with wire sizes other than the recommended AWG 24-18?
  While the connector is designed for AWG 24-18 wires, it's possible to use other wire sizes. However, this may affect the connector's performance and reliability. Consult Phoenix Contact's documentation or contact their technical support for guidance on using alternative wire sizes.

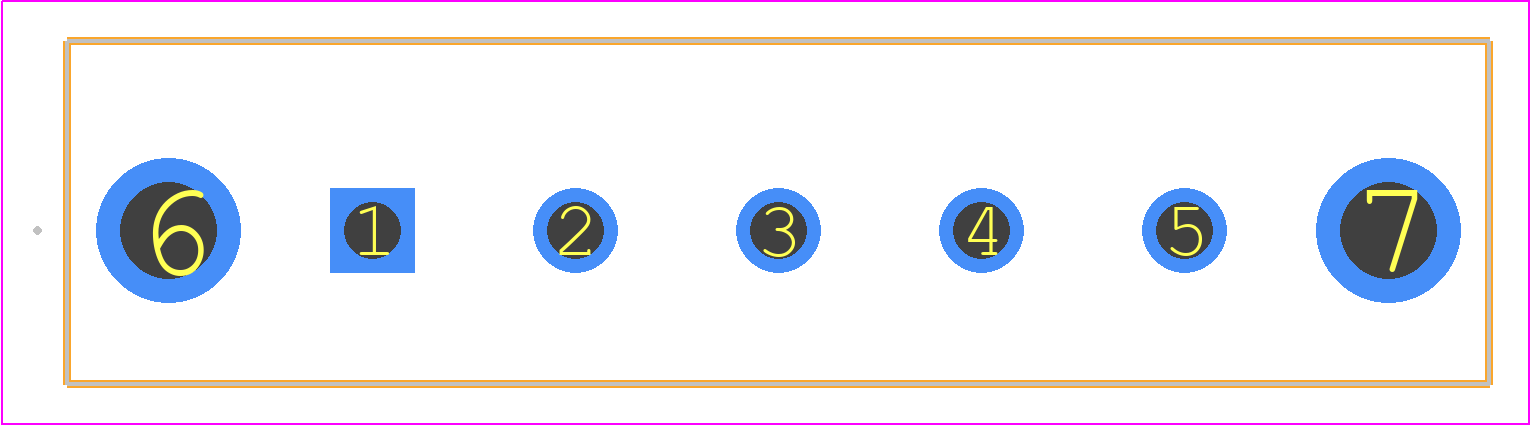

• Are there any specific PCB layout considerations I should be aware of when using this connector?
  Yes, Phoenix Contact provides guidelines for PCB layout and design to ensure proper connector functionality and reliability. It's essential to follow their recommendations for pad size, spacing, and layout to avoid potential issues.
