1862658 - Phoenix Contact

Description: IMC 1,5/10-G-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Socket, number of potentials: 10, number of rows: 1, number of positions: 10, number of connections: 10, product range: IMC 1,5/..-G, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 2, plug-in system: COMBICON MC 1,5, Pin connector pattern a

Download 1862658 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

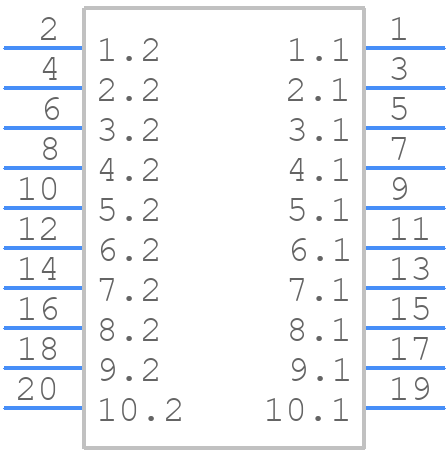

1862658 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

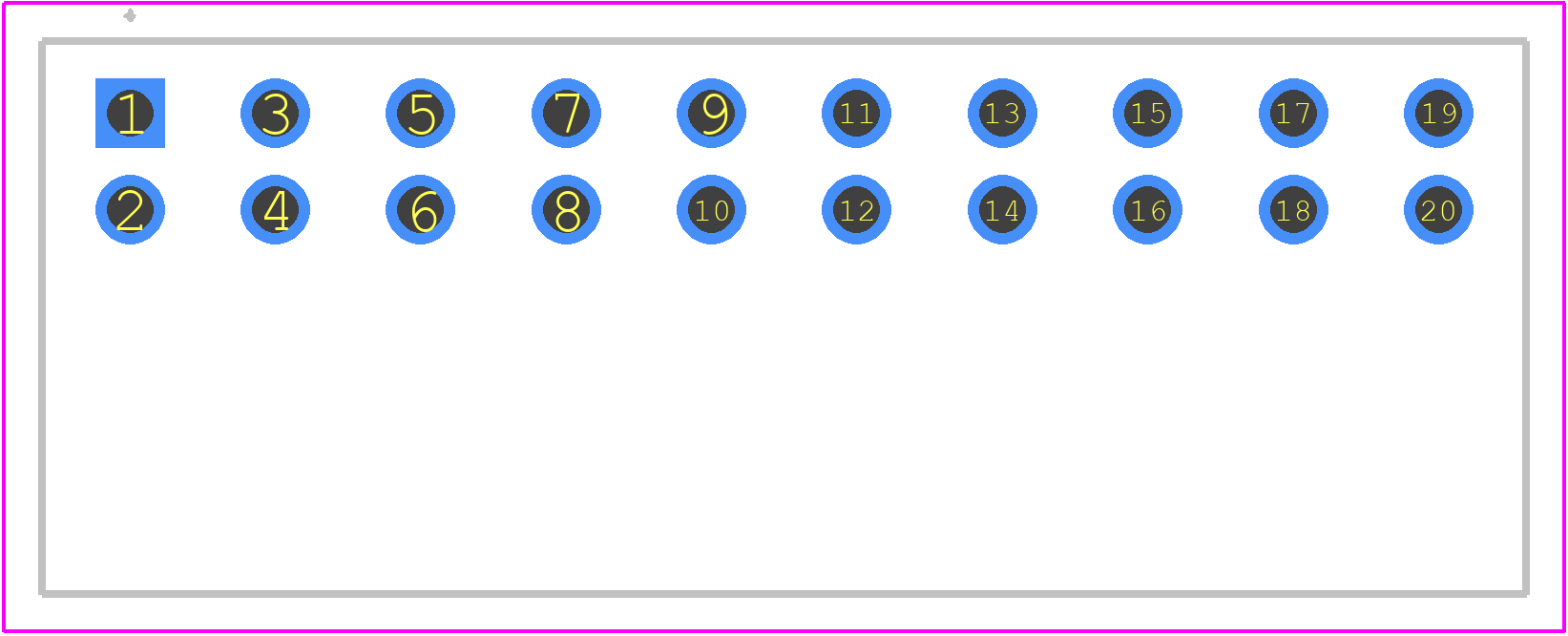

1862658 - Phoenix Contact PCB footprint - Other - Other - 1862658
click to zoom
3D Models
1862658 - Phoenix Contact - 3D model - Other - 1862658
click to zoom

1862658 Details

  • Manufacturer Part Number:

    1862658

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CCA; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1862658 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1862658 connector is designed to withstand vibrations up to 10g according to IEC 61373, making it suitable for high-vibration applications.
  • Yes, the connector is designed for automated assembly and can withstand reflow soldering temperatures up to 260°C for 30 seconds.
  • The operating temperature range for the 1862658 connector is -40°C to 125°C.
  • Yes, the connector is designed to meet IP67 and IP69K standards, making it suitable for outdoor and harsh environment applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1862658 Overview

Use the download button to access the 1862658 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18626, or try a keyword search, such as Terminals and Terminal Blocks
