1864341 - Phoenix Contact

Description: SPTAF 1/ 8-3,5-LL - Printed circuit board terminal, nominal current: 13.5 A, rated voltage (III/2): 160 V, nominal cross section: 1 mm<sup>2</sup>, number of potentials: 8, number of rows: 1, number of positions per row: 8, product range: SPTAF 1/..-LL, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.6 mm, number of solder pins per potential: 2, type of packaging: pack

Download 1864341 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1864341 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

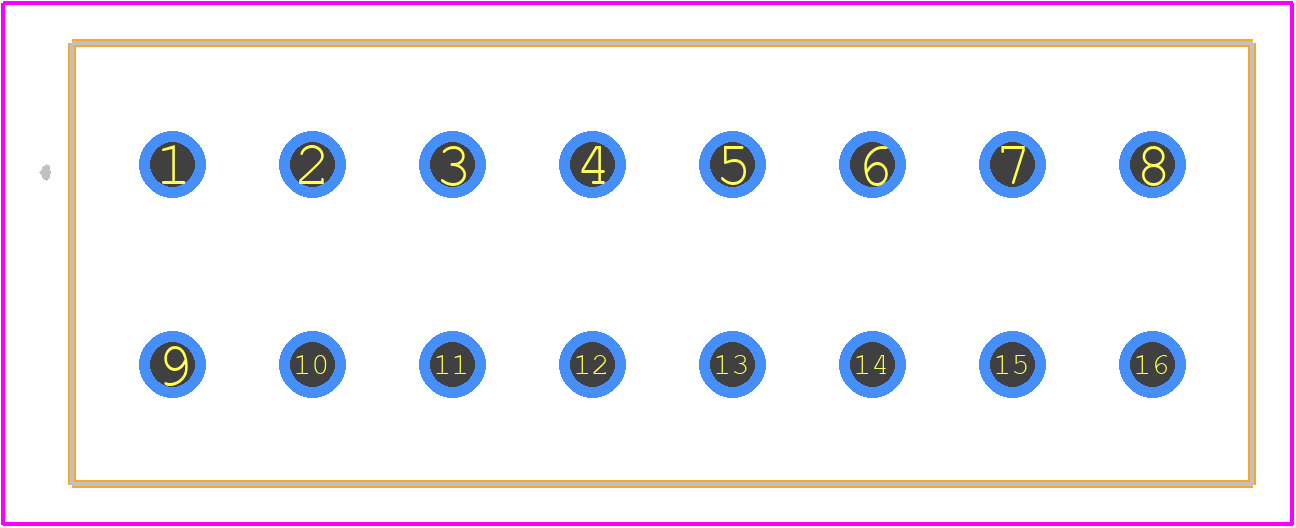

1864341 - Phoenix Contact PCB footprint - Other - Other - 1864341-2
click to zoom
3D Models
1864341 - Phoenix Contact - 3D model - Other - 1864341-2
click to zoom

1864341 Details

  • Manufacturer Part Number:

    1864341

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.97

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    PUSH-IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    13.5 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1 mm2

  • Wire Gauge:

    18 AWG

1864341 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1864341 is -40°C to 125°C.
  • Yes, the 1864341 is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • The 1864341 is not certified for use in hazardous locations. If you need a product for hazardous locations, consider Phoenix Contact's ATEX- or IECEx-certified products.
  • The maximum wire size that can be connected to the 1864341 is 2.5 mm² (AWG 14).
  • Yes, the 1864341 is RoHS and REACH compliant, meeting the European Union's directives for restriction of hazardous substances and registration, evaluation, authorization, and restriction of chemicals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1864341 Overview

Use the download button to access the 1864341 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18643, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
