1869334 - Phoenix Contact

Description: SMKDSN 1,5/14-5,08 - Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 14, number of rows: 1, number of positions per row: 14, product range: SMKDSN 1,5, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins

Download 1869334 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1869334 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

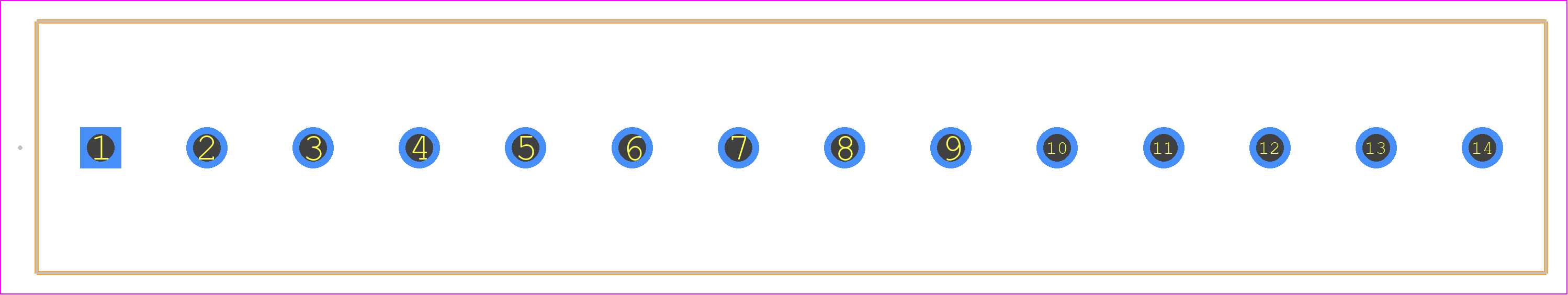

1869334 - Phoenix Contact PCB footprint - Other - Other - 1869334
click to zoom
3D Models
1869334 - Phoenix Contact - 3D model - Other - 1869334
click to zoom

1869334 Details

  • Manufacturer Part Number:

    1869334

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.88

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    14

  • Rated Current:

    13.5 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1869334 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Phoenix Contact documentation.
  • Yes, the 1869334 connectors are designed to meet IP67 and IP69K standards, making them suitable for outdoor use and harsh industrial environments.
  • Yes, the connectors are designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making them suitable for high-vibration applications.
  • The maximum operating temperature for the 1869334 connectors is 125°C, as specified in the Phoenix Contact documentation.
  • Yes, the 1869334 connectors meet UL 1977 and CSA 22.2 No. 1977 requirements, ensuring compliance with North American safety regulations.
