Part Image

186A-0520138 - Multicomp Pro

Description: Mini USB, 5Pos, Receptacle, R/A,Through Hole -20°C to +85°C,100V AC

Download 186A-0520138 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
186A-0520138 - Multicomp Pro - PCB symbol
click to zoom

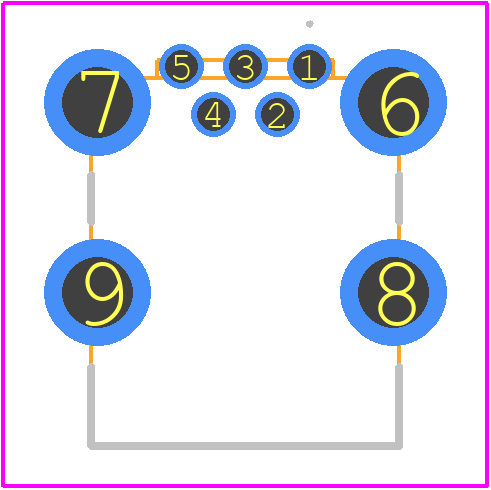

PCB Footprints
186A-0520138 - Multicomp Pro PCB footprint - Other - Other - 186A-0520138-3
click to zoom

186A-0520138 Details

  • Manufacturer Part Number:

    186A-0520138

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    SPC Multicomp

  • Connector Type:

    USB CONNECTOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

186A-0520138 Overview

Use the download button to access the 186A-0520138 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 186A-, or try a keyword search, such as Telecom and Datacom Connectors

Parts related to 186A-0520138

Showing 0 results
