1870019 - Phoenix Contact

Description: FFKDSA1/H-2,54-14 - Printed circuit board terminal, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm<sup>2</sup>, number of potentials: 14, number of rows: 1, number of positions per row: 14, product range: FFKDS(A) 0,5/..-H, pitch: 2.54 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.4 mm, number of solder pins per potential: 2, type of packaging:

Download 1870019 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

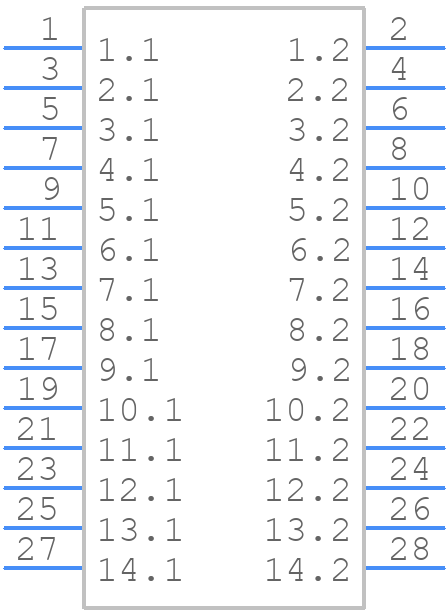

1870019 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

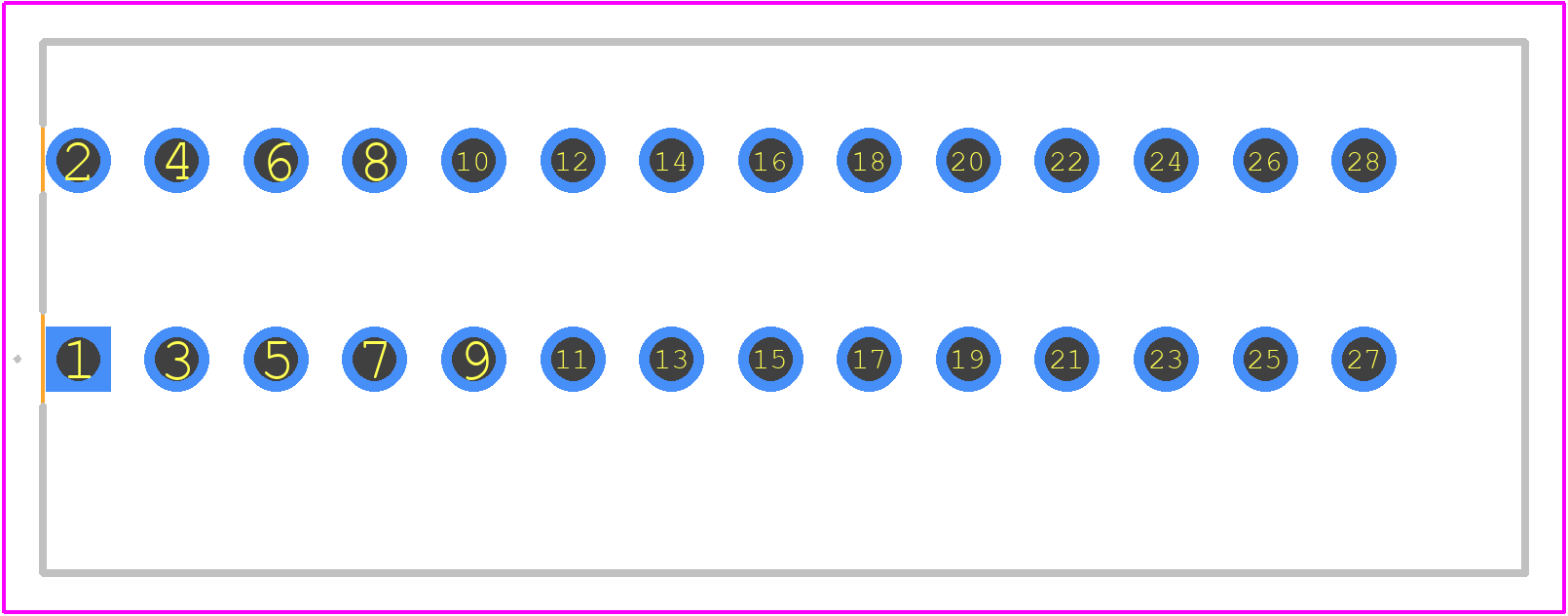

1870019 - Phoenix Contact PCB footprint - Other - Other - 1870019_1
click to zoom
3D Models
1870019 - Phoenix Contact - 3D model - Other - 1870019_1
click to zoom

1870019 Details

  • Manufacturer Part Number:

    1870019

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    PUSH-IN/SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    14

  • Rated Current:

    6 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CSA;CUL;EAC;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1870019 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1870019 is -40°C to 125°C.
  • Yes, the 1870019 is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • The 1870019 is not certified for use in hazardous locations. If you need a product for hazardous locations, consider the 1870020 or 1870021, which have ATEX and IECEx certifications.
  • The maximum cable diameter that can be connected to the 1870019 is 12 mm.
  • Yes, the 1870019 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.
