1871470000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17.5 A, Pitch in mm: 3.81, Number of poles: 9, THT solder connection, Box

Download 1871470000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1871470000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

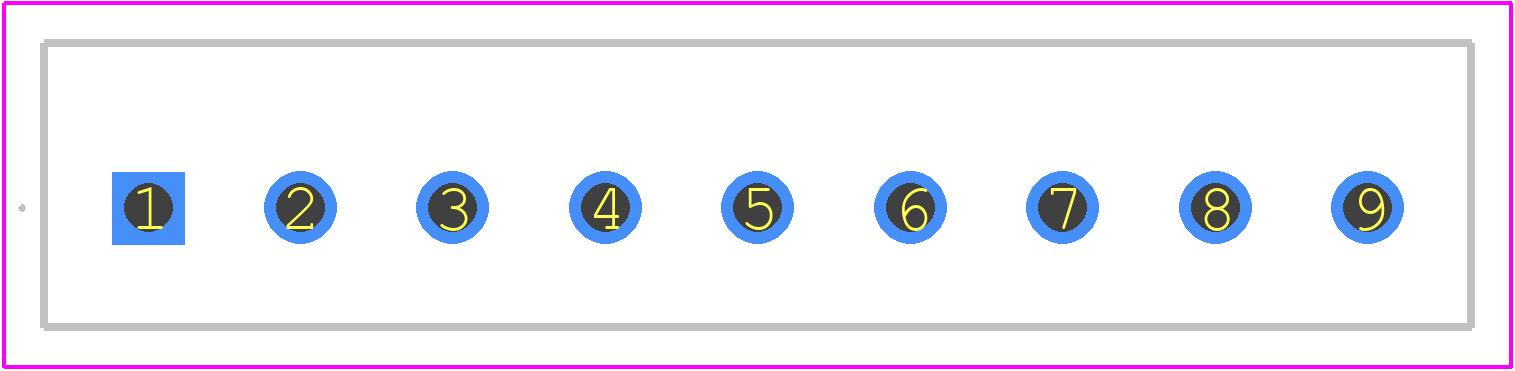

1871470000 - Weidmüller PCB footprint - Other - Other - 1871470000
click to zoom
3D Models
1871470000 - Weidmüller - 3D model - Other - 1871470000
click to zoom

1871470000 Details

  • Manufacturer Part Number:

    1871470000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    17.5 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK
