1871762 - Phoenix Contact

Description: MKDS 3/ 8-5,08 BK - Printed circuit board terminal, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm<sup>2</sup>, number of potentials: 8, number of rows: 1, number of positions per row: 8, product range: MKDS 3, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: black, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potenti

Download 1871762 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1871762 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

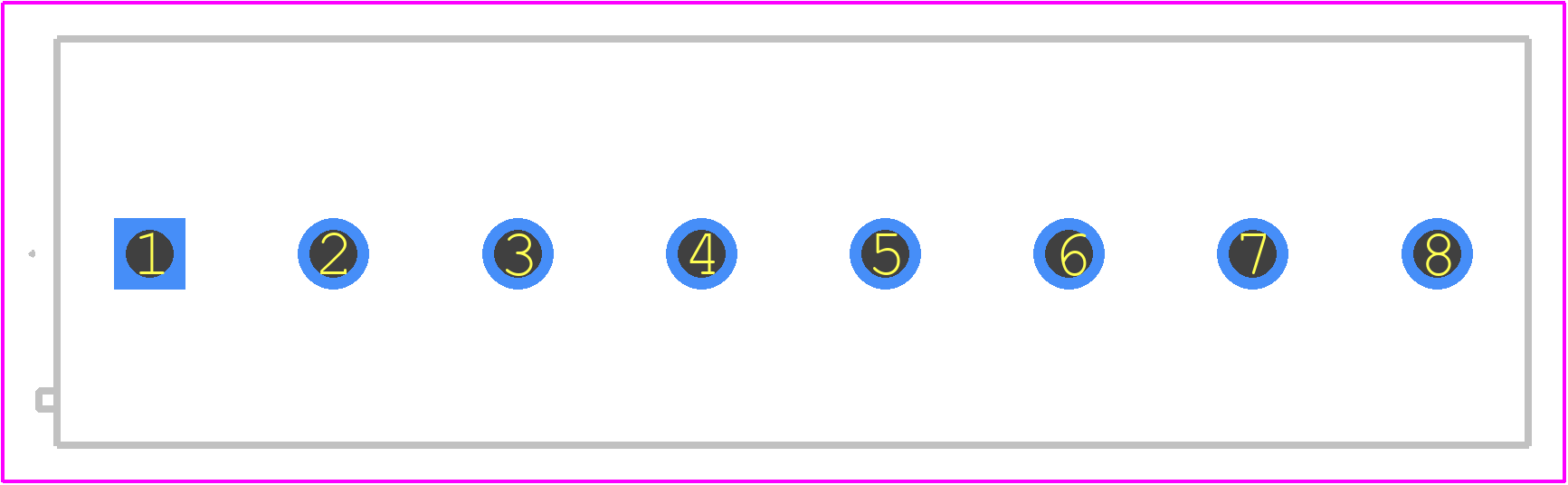

1871762 - Phoenix Contact PCB footprint - Other - Other - 1871762-2
click to zoom
3D Models
1871762 - Phoenix Contact - 3D model - Other - 1871762-2
click to zoom

1871762 Details

  • Manufacturer Part Number:

    1871762

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARD: UL 94V-0, PA; SAFEFY APPROVAL: SEV; UL

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Ways:

    8

  • Rated Current:

    24 A

  • Rated Voltage:

    400 V

  • Safety Approval:

    CCA; CSA; CUL; DNVGL; EAC

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    4 mm2

  • Wire Gauge:

    12 AWG

1871762 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1871762 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific requirements of your application.
  • The 1871762 connector has a IP20 rating, which means it's not suitable for outdoor use or exposure to water or moisture. If you need a connector for outdoor use, consider using a connector with a higher IP rating, such as IP67 or IP69K.
  • It's not recommended to use the 1871762 connector with aluminum wires, as they can cause corrosion and reduce the connector's lifespan. Instead, use copper or copper-alloy wires, which are compatible with the connector's materials.
  • The 1871762 connector has a maximum operating temperature of 125°C (257°F), according to the datasheet. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific temperature requirements of your application.
