1874195 - Phoenix Contact

Description: DMCV 1,5/ 6-G1F-3,5-LR P26THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 12, number of rows: 2, number of positions: 6, number of connections: 12, product range: DMCV 1,5/..-G1F-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON D

Download 1874195 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1874195 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

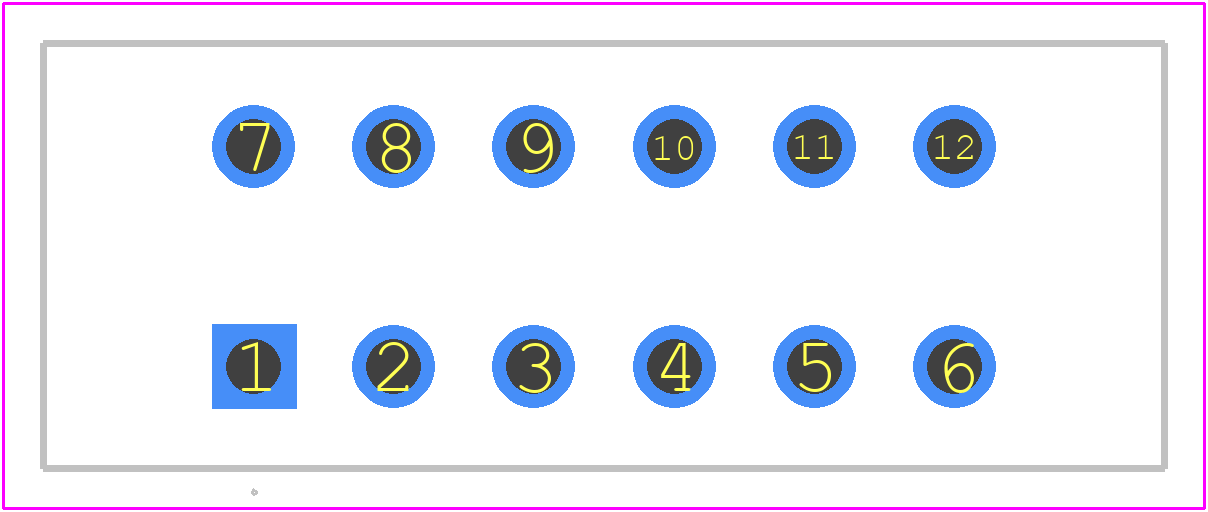

1874195 - Phoenix Contact PCB footprint - Other - Other - 1874195-2
click to zoom
3D Models
1874195 - Phoenix Contact - 3D model - Other - 1874195-2
click to zoom

1874195 Details

  • Manufacturer Part Number:

    1874195

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.76

  • Additional Feature:

    STANDARD: UL 94V-0, LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    6

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1874195 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1874195 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific requirements of your application.
  • The 1874195 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but it's not suitable for outdoor use or exposure to water. If you need a connector for outdoor use, consider using a connector with a higher IP rating, such as IP67 or IP68.
  • It's not recommended to use the 1874195 connector with aluminum wires, as it's designed for copper wires. Using aluminum wires may lead to corrosion and reduced connector performance. If you need to use aluminum wires, consult with Phoenix Contact or a qualified engineer to determine the best solution.
  • The 1874195 connector has a maximum operating temperature of 125°C (257°F) according to the datasheet. However, it's recommended to consult with Phoenix Contact or a qualified engineer to determine the suitable operating temperature range for your specific application.
