1874320000 - Weidmüller

Description: PCB terminal, 160 V, 17.5 A, Pitch in mm: 3.50, 1.5 mm², Number of poles: 6, PUSH IN with actuator, THT/THR solder connection, 180°, Tape

Download 1874320000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1874320000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

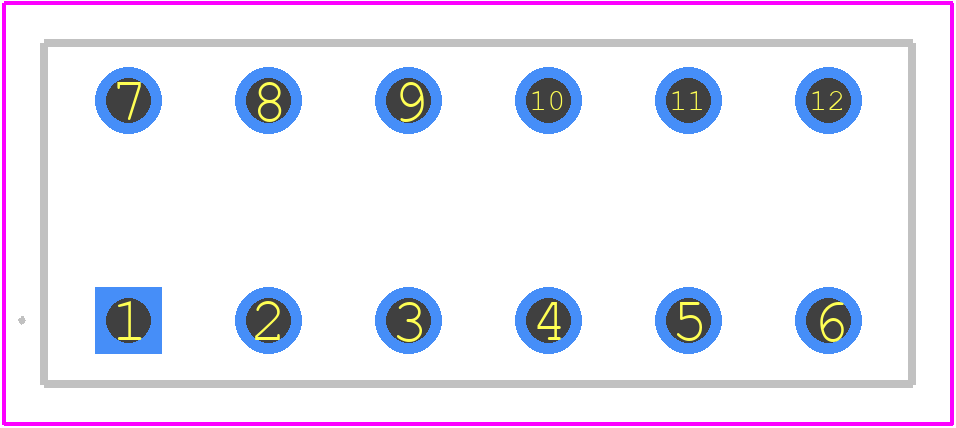

1874320000 - Weidmüller PCB footprint - Other - Other - 1874320000
click to zoom
3D Models
1874320000 - Weidmüller - 3D model - Other - 1874320000
click to zoom

1874320000 Details

  • Manufacturer Part Number:

    1874320000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.35

  • Additional Feature:

    GLASS FILLED LCP, 94V-0

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1874320000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1874320000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1874320000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the necessary EU directives.
  • The recommended torque for the screw terminals on the 1874320000 is 0.5 Nm to 1.2 Nm, as specified by Weidmüller.
  • The 1874320000 is not designed for use in hazardous locations. It does not have any specific certifications for explosive atmospheres or other hazardous environments.
  • The typical lead time for delivery of the 1874320000 varies depending on the region and availability. It's best to check with Weidmüller or an authorized distributor for the most up-to-date information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1874320000 Overview

Use the download button to access the 1874320000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18743, or try a keyword search, such as Terminals and Terminal Blocks
