1874530000 - Weidmüller

Description: PCB terminal, 630 V, 17.5 A, Pitch in mm: 7.62, 1.5 mm², Number of poles: 4, PUSH IN with actuator, THT/THR solder connection, 180°, Tape

Download 1874530000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1874530000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

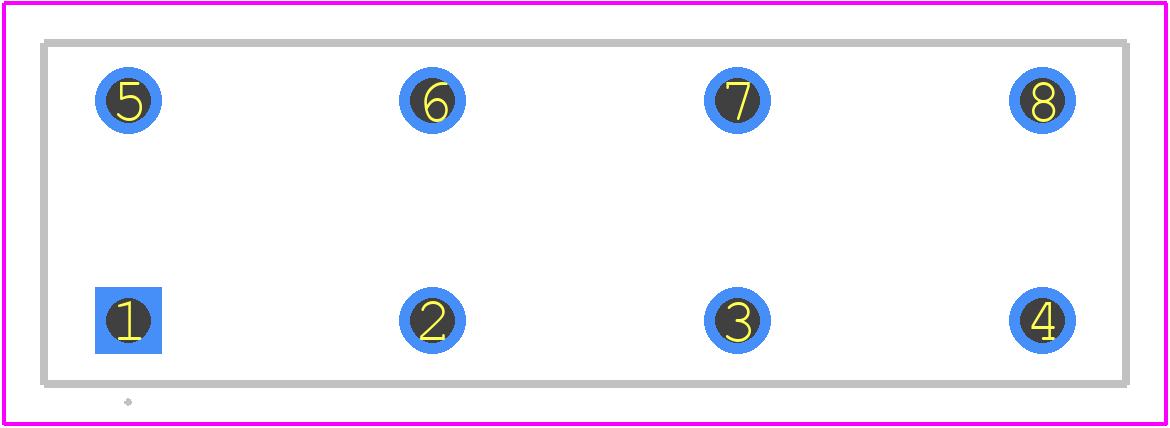

1874530000 - Weidmüller PCB footprint - Other - Other - 1874530000
click to zoom
3D Models
1874530000 - Weidmüller - 3D model - Other - 1874530000
click to zoom

1874530000 Details

  • Manufacturer Part Number:

    1874530000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    GLASS FILLED LCP, 94V-0

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1874530000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1874530000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1874530000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental sustainability.
  • The recommended torque for the screw terminals on the 1874530000 is 0.5 Nm to 1.2 Nm, as specified by Weidmüller. Over-tightening may damage the terminals.
  • The 1874530000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications only.
  • The recommended wire size for the 1874530000 is 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14), as specified by Weidmüller.
