1874600000 - Weidmüller

Description: PCB terminal, 160 V, 17.5 A, Pitch in mm: 3.50, 1.5 mm², Number of poles: 7, PUSH IN with actuator, THT/THR solder connection, 180°, Tape

Download 1874600000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1874600000 - Weidmüller - PCB symbol
click to zoom

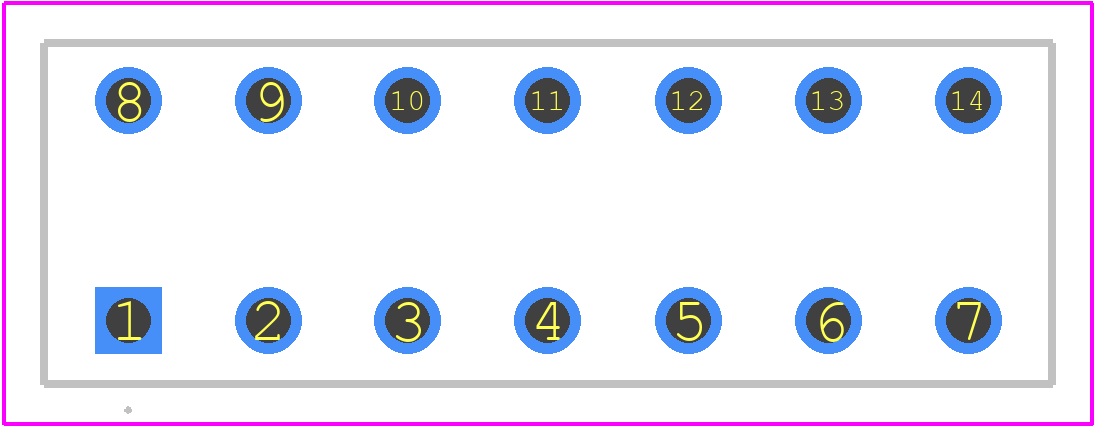

PCB Footprints
1874600000 - Weidmüller PCB footprint - Other - Other - 1874600000
click to zoom
3D Models
1874600000 - Weidmüller - 3D model - Other - 1874600000
click to zoom

1874600000 Details

  • Manufacturer Part Number:

    1874600000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    GLASS FILLED LCP, 94V-0

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    7

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1874600000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1874600000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1874600000 is designed to be compatible with various industrial automation protocols, including PROFINET and EtherNet/IP, making it suitable for use in industrial automation applications.
  • The maximum cable length supported by the 1874600000 depends on the specific application and cable type used. However, as a general guideline, Weidmüller recommends a maximum cable length of 100 meters for most applications.
  • The 1874600000 has built-in surge protection, which provides a certain level of protection against electrical surges and spikes. However, depending on the specific application and environmental conditions, additional external protection may still be necessary to ensure reliable operation.
  • The 1874600000 is not designed for use in hazardous locations or explosive atmospheres. If you need a product for use in such environments, you should consult with Weidmüller or a qualified engineer to select a suitable alternative.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1874600000 Overview

Use the download button to access the 1874600000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18746, or try a keyword search, such as Terminals and Terminal Blocks
