1875522 - Phoenix Contact

Description: IMCV 1,5/12-G-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Socket, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 12, product range: IMCV 1,5/..-G, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 2, plug-in system: COMBICON MC 1,5, Pin connector pattern

Download 1875522 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

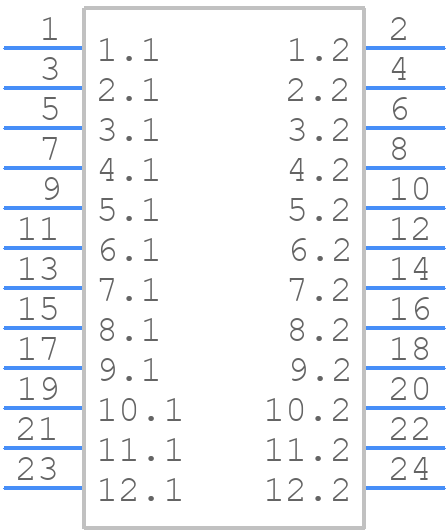

1875522 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

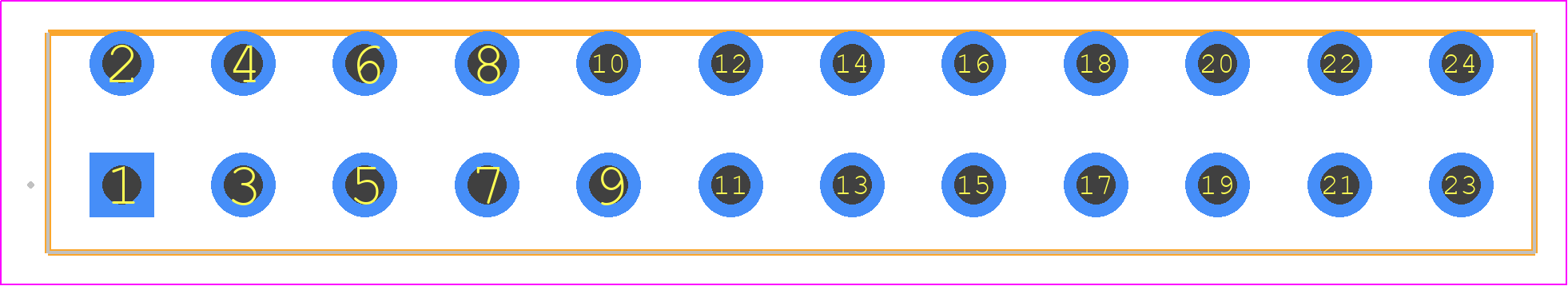

1875522 - Phoenix Contact PCB footprint - Other - Other - 1875522
click to zoom
3D Models
1875522 - Phoenix Contact - 3D model - Other - 1875522
click to zoom

1875522 Details

  • Manufacturer Part Number:

    1875522

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Fastening Method:

    PLUG IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    15 AWG

1875522 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact manual.
  • Yes, the 1875522 connector is designed to withstand vibrations and is suitable for use in high-vibration environments, but it's recommended to follow the manufacturer's guidelines for secure mounting and wiring.
  • Yes, the 1875522 connector is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and accessories.
  • The operating temperature range for the 1875522 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and commercial applications.
  • The 1875522 connector is not inherently explosion-proof, but it can be used in hazardous locations when used in conjunction with other explosion-proof components and following the manufacturer's guidelines.
