1875564 - Phoenix Contact

Description: IMCV 1,5/16-G-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Socket, number of potentials: 16, number of rows: 1, number of positions: 16, number of connections: 16, product range: IMCV 1,5/..-G, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 2, plug-in system: COMBICON MC 1,5, Pin connector pattern

Download 1875564 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

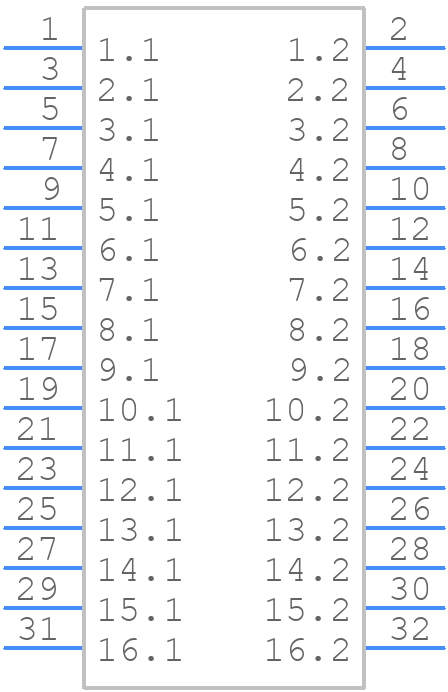

1875564 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

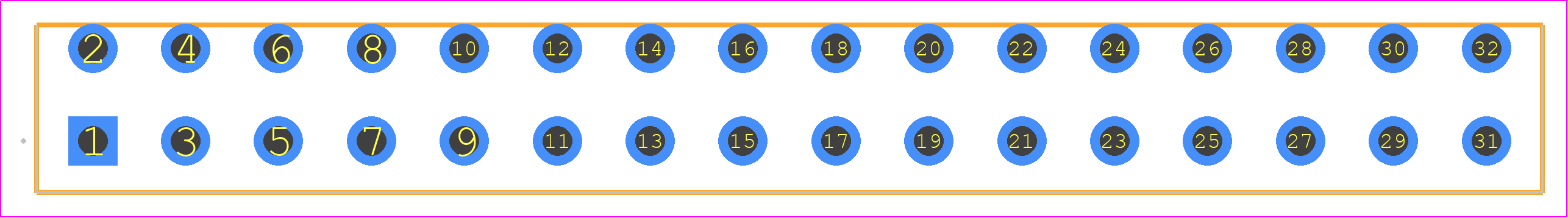

1875564 - Phoenix Contact PCB footprint - Other - Other - 1875564
click to zoom
3D Models
1875564 - Phoenix Contact - 3D model - Other - 1875564
click to zoom

1875564 Details

  • Manufacturer Part Number:

    1875564

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PA; 94V-0

  • Fastening Method:

    PLUG IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    16

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1875564 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1875564 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1875564 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, making it easy to integrate into existing systems.
  • The maximum current rating for the 1875564 is 12 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1875564 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, ensuring that it meets the necessary environmental and safety standards.
  • The 1875564 is typically used in industrial automation, process control, and power distribution applications, including use in control cabinets, machinery, and equipment.
