1876890000 - Weidmüller

Description: PCB connector (board connection), 320 V, 27.5 A, Pitch in mm: 5.08, Number of poles: 6, THT/THR solder connection, Box

Download 1876890000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1876890000 - Weidmüller - PCB symbol
click to zoom

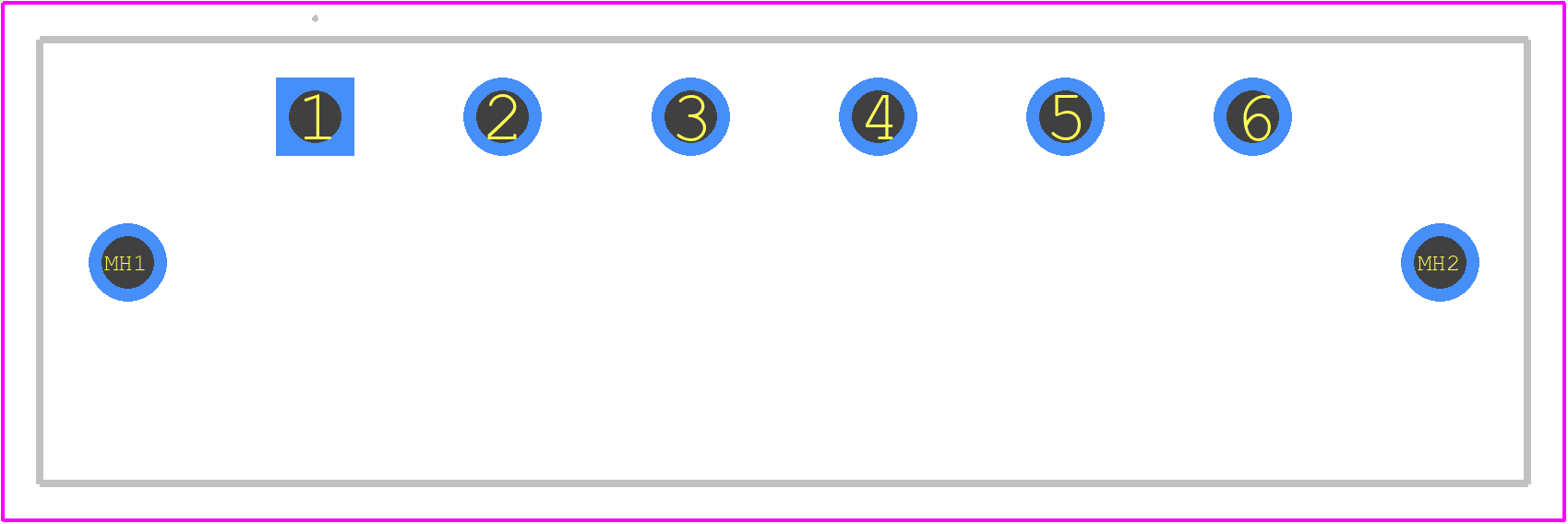

PCB Footprints
1876890000 - Weidmüller PCB footprint - Other - Other - 1876890000-2
click to zoom
3D Models
1876890000 - Weidmüller - 3D model - Other - 1876890000-2
click to zoom

1876890000 Details

  • Manufacturer Part Number:

    1876890000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1876890000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1876890000 connector is -40°C to 125°C, as specified by the manufacturer.
  • Yes, the 1876890000 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture and extreme temperatures.
  • The 1876890000 connector has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 1876890000 connector is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
  • Yes, the 1876890000 connector is designed to be compatible with other Weidmüller products, including their range of connectors, cables, and interfaces.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1876890000 Overview

Use the download button to access the 1876890000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18768, or try a keyword search, such as Terminals and Terminal Blocks
