1877588 - Phoenix Contact

Description: SMKDSNF 1,5/12-5,08 - Printed circuit board terminal, nominal current: 12 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 12, number of rows: 1, number of positions per row: 12, product range: SMKDSNF 1,5, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 325 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pin

Download 1877588 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1877588 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

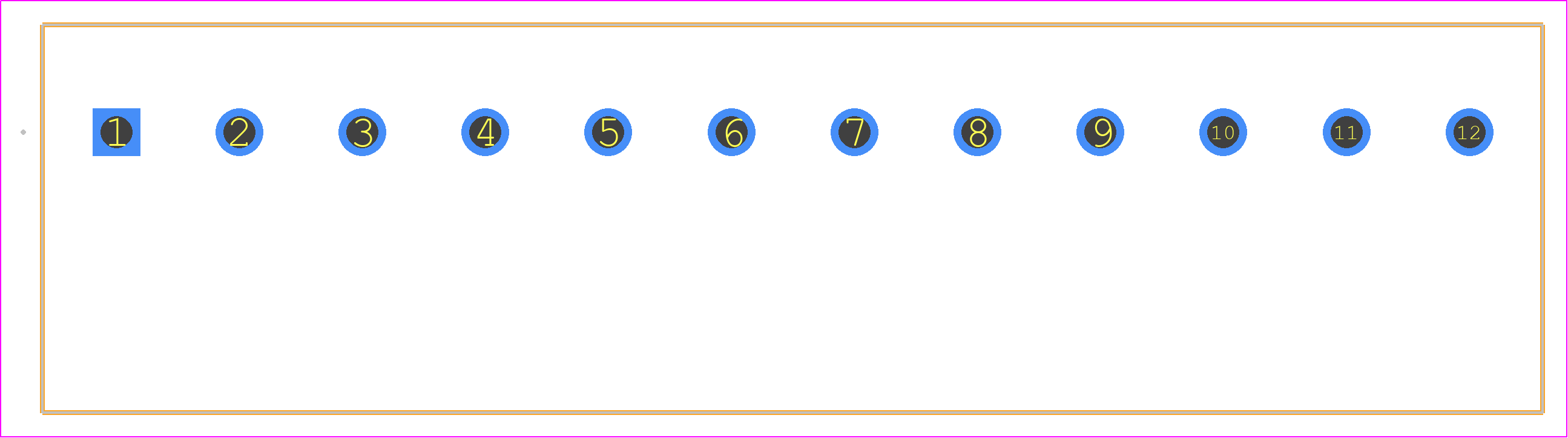

1877588 - Phoenix Contact PCB footprint - Other - Other - 1877588
click to zoom
3D Models
1877588 - Phoenix Contact - 3D model - Other - 1877588
click to zoom

1877588 Details

  • Manufacturer Part Number:

    1877588

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    2

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1877588 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1877588 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1877588 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, making it easy to integrate into existing systems.
  • The maximum current rating for the 1877588 is 12 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1877588 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, ensuring that it meets the necessary environmental and safety standards.
  • The 1877588 is typically used in industrial automation, process control, and power distribution applications, including use in control cabinets, machinery, and equipment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1877588 Overview

Use the download button to access the 1877588 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18775, or try a keyword search, such as Terminals and Terminal Blocks
