1885670000 - Weidmüller

Description: PCB terminal, 160 V, 17.5 A, Pitch in mm: 3.50, 1.5 mm², Number of poles: 4, PUSH IN with actuator, THT/THR solder connection, 135°, Tube

Download 1885670000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1885670000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

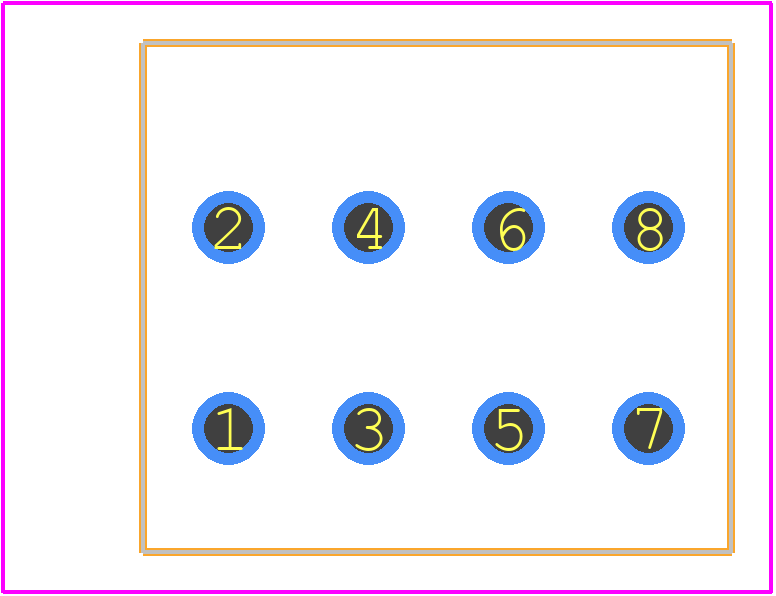

1885670000 - Weidmüller PCB footprint - Other - Other - 1885670000-1
click to zoom
3D Models
1885670000 - Weidmüller - 3D model - Other - 1885670000-1
click to zoom

1885670000 Details

  • Manufacturer Part Number:

    1885670000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.5

  • Additional Feature:

    LCP GF, 94V-0

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    17.5 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1885670000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1885670000 is -40°C to 70°C, according to the manufacturer's specifications.
  • Yes, the 1885670000 is designed to be compatible with industrial automation protocols such as PROFINET, EtherNet/IP, and Modbus TCP.
  • The 1885670000 supports data transfer rates of up to 1 Gbps, making it suitable for high-speed industrial communication applications.
  • Yes, the 1885670000 has built-in surge protection to protect against voltage spikes and electromagnetic interference (EMI).
  • The 1885670000 is designed for use in non-hazardous locations only. If you need a product for use in hazardous locations, you should consider a different product or consult with the manufacturer.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1885670000 Overview

Use the download button to access the 1885670000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18856, or try a keyword search, such as Terminals and Terminal Blocks
