1885730000 - Weidmüller

Description: PCB terminal, 160 V, 17.5 A, Pitch in mm: 3.50, 1.5 mm², Number of poles: 10, PUSH IN with actuator, THT/THR solder connection, 135°, Tube

Download 1885730000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1885730000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

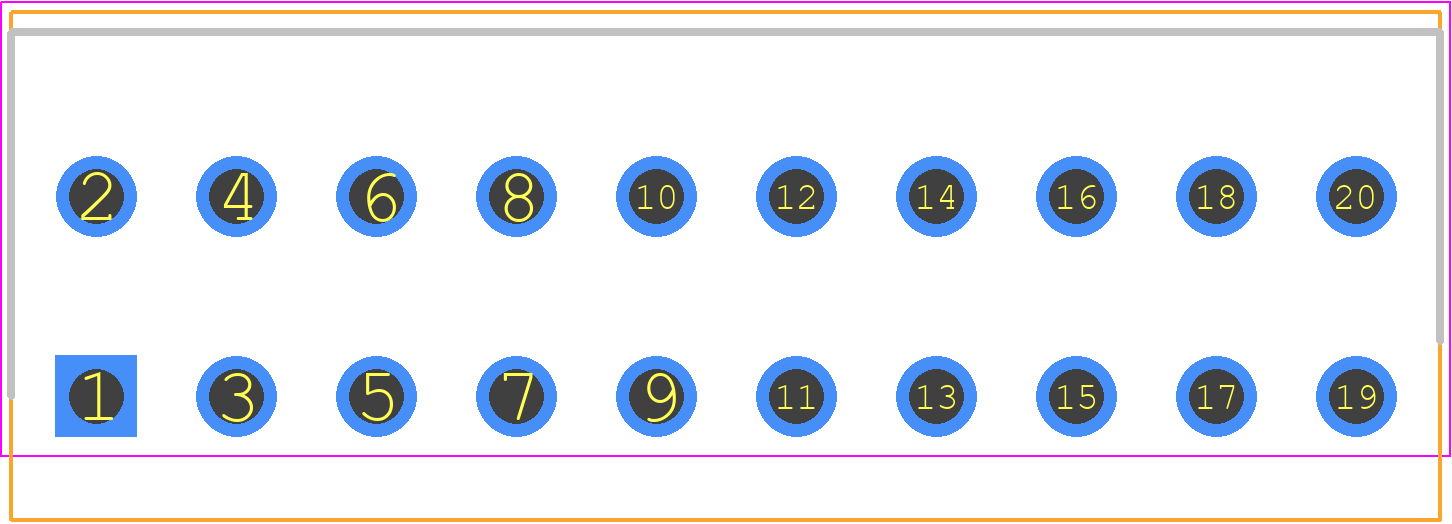

1885730000 - Weidmüller PCB footprint - Header, Receptacle - Right Angle PTH Box - Header, Receptacle - Right Angle PTH Box - 1885730000
click to zoom
3D Models
1885730000 - Weidmüller - 3D model - Header, Receptacle - Right Angle PTH Box - 1885730000
click to zoom

1885730000 Details

  • Manufacturer Part Number:

    1885730000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.5

  • Additional Feature:

    LCP GF, 94V-0

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    17.5 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1885730000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1885730000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1885730000 is designed for DIN rail mounting, making it easy to install and integrate into existing systems.
  • The maximum current rating of the 1885730000 is 10A per contact, making it suitable for use in applications that require high current handling.
  • Yes, the 1885730000 is RoHS and REACH compliant, making it suitable for use in applications that require compliance with these regulations.
  • The 1885730000 is typically used in industrial automation, process control, and power distribution applications, where reliable and secure connections are required.
