1887580000 - Weidmüller

Description: PCB terminal, 160 V, 17.5 A, Pitch in mm: 3.50, 1.5 mm², Number of poles: 4, PUSH IN with actuator, THT/THR solder connection, 135°, Tape

Download 1887580000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1887580000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

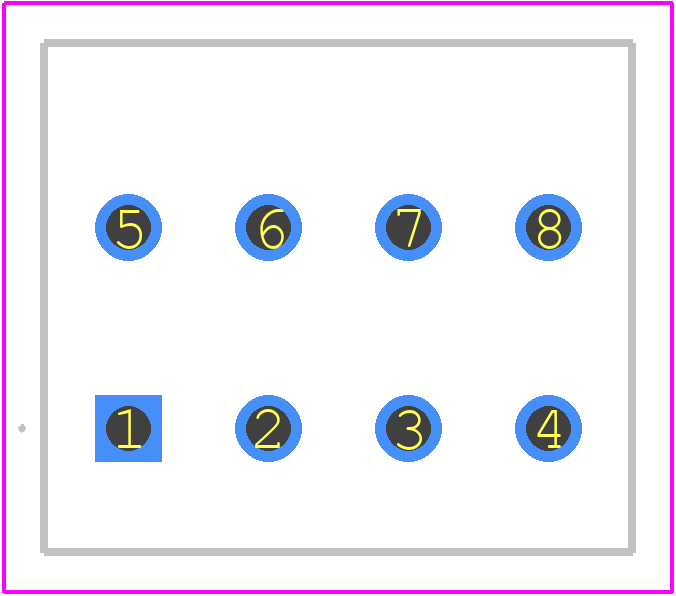

1887580000 - Weidmüller PCB footprint - Other - Other - 1887580000
click to zoom
3D Models
1887580000 - Weidmüller - 3D model - Other - 1887580000
click to zoom

1887580000 Details

  • Manufacturer Part Number:

    1887580000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.5

  • Additional Feature:

    LCP GF, 94V-0

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    17.5 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1887580000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1887580000 is -40°C to 85°C, according to Weidmüller's documentation.
  • Yes, the 1887580000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's environmental regulations.
  • The maximum current rating of the 1887580000 is 16 A per pole, according to Weidmüller's specifications.
  • The 1887580000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications.
  • The 1887580000 is designed for indoor use, but it can be used outdoors if properly protected from environmental factors such as moisture, dust, and extreme temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1887580000 Overview

Use the download button to access the 1887580000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18875, or try a keyword search, such as Terminals and Terminal Blocks
