1888946-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Dual Positions 2 | PCB Mount Orientation Vertical | Number of Power Positions 4 | Number of Signal Positions 0 | Number of Positions 2 | Keying & Polarized Position Locations 0 | Contact Features: Contact Type Socket | PCB Contact Termination Area Plating Material Finish Matte | Contact Mating Area Plating Material Gold | PCB Contact Termination Area Plating Material Thickness 2.54 MICM | Contact Underplating Material Nickel | PC

Download 1888946-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1888946-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

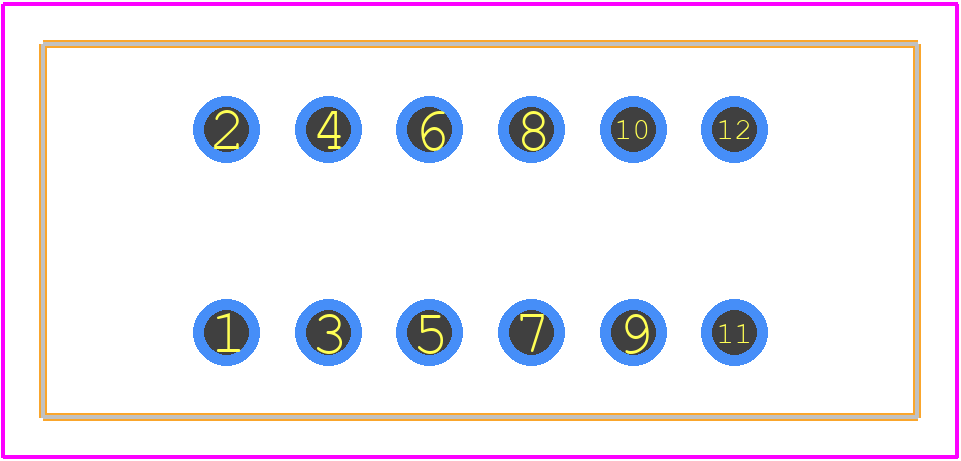

1888946-1 - TE Connectivity PCB footprint - Other - Other - 1888946-1-3
click to zoom
3D Models
1888946-1 - TE Connectivity - 3D model - Other - 1888946-1-3
click to zoom

1888946-1 Details

  • Manufacturer Part Number:

    1888946-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    7 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    TERMINAL PITCH FOR POWER CONTACTS IS 7.62 MM

  • Board Mounting Option:

    COMPLIANT BOARDLOCK

  • Body Depth:

    0.55 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    22A

  • Mating Contact Row Spacing:

    0.2 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Rated Current (Signal):

    22 A

  • Rated Voltage:

    400 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT/SOLDER

  • Total Number of Contacts:

    1

  • UL Flammability Code:

    94V-0

1888946-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1888946-1 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1888946-1 connector has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust. However, it's essential to follow proper sealing and installation guidelines to maintain the IP67 rating.
  • The 1888946-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this range to maintain its performance and reliability.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 1888946-1 connector. However, it's crucial to ensure that the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.
