189-009-513R691 - NorComp

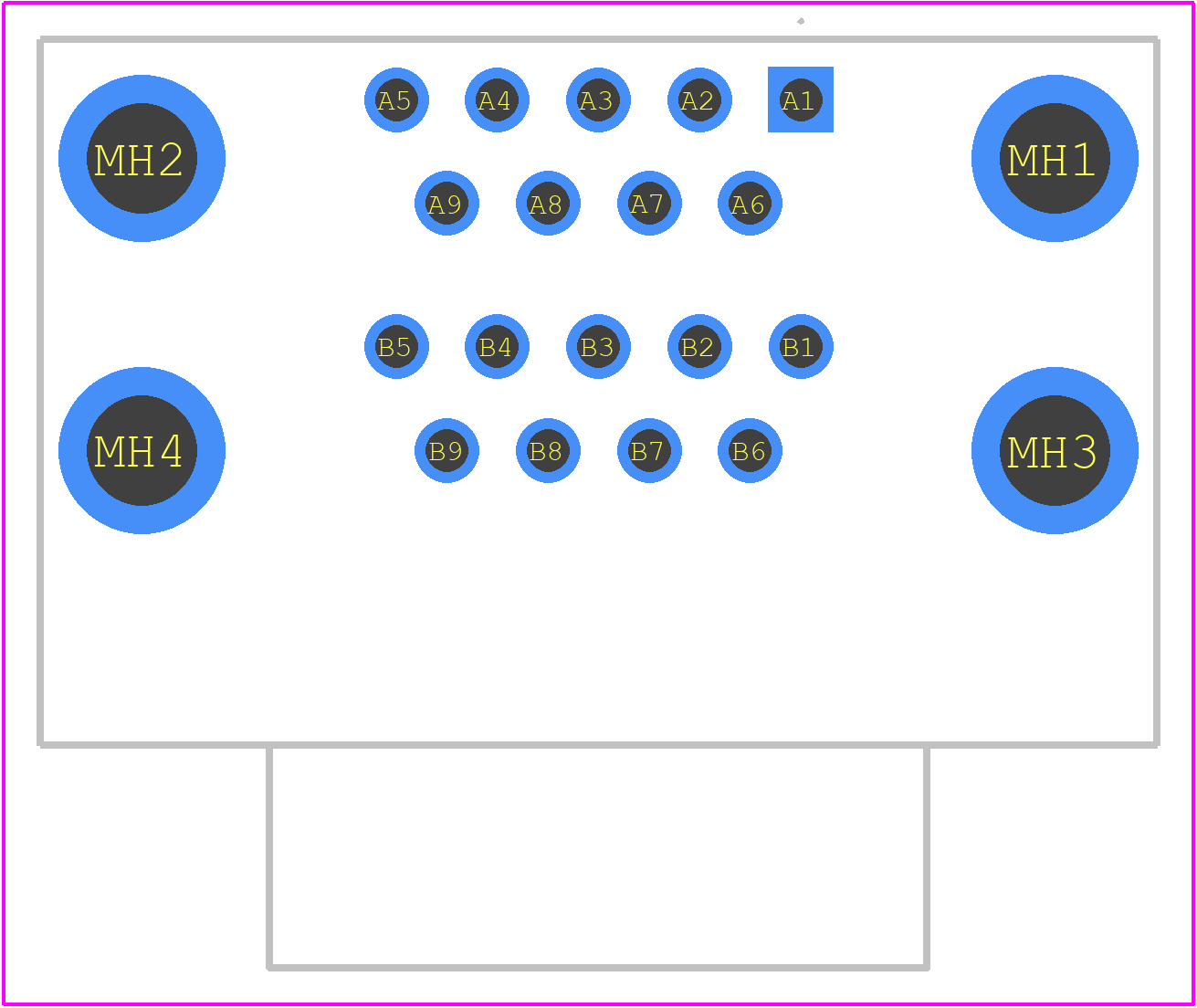

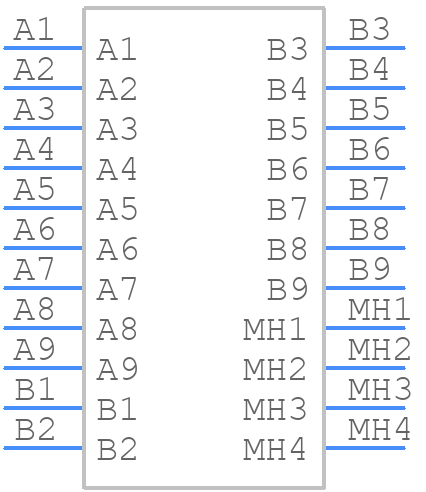

189-009-513R691 Details

• Manufacturer Part Number:

  189-009-513R691

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  NorComp

• YTEOL:

  8

• Additional Feature:

  OTHER STACKING CONNECTOR: 9 CONTACTS; 1/E SHELL SIZE

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  1.15 inch

• Body Depth:

  0.772 inch

• Body Length:

  1.204 inch

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Gold (Au)

• Contact Gender:

  FEMALE-FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  STAGGERED

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  1400VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulation Resistance:

  1000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYAMIDE9T

• JESD-609 Code:

  e4

• Mating Contact Pitch:

  0.11 inch

• Mating Contact Row Spacing:

  .112/.15 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  STANDOFF

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  TWO

• Number Of PCB Rows:

  2+2

• Number of Rows Loaded:

  2+2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.84/3.91 mm

• Plating Thickness:

  FLASH inch

• Rated Current (Signal):

  5 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  STEEL

• Shell Size:

  1/E; 1/E

• Terminal Length:

  0.125 inch

• Terminal Pitch:

  2.77 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  18

• UL Flammability Code:

  94V-0
