1893AFLF - Renesas Electronics

Description: The IDT1893AF is a lower cost, re-packaged version of the IDT1893Y-10. The IDT1893AF is a fully integrated, Physical Layer device (PHY) that is compliant with both the 10Base-T and 100Base-TX CSMA/CD Ethernet Standard, ISO/IEC 8802-3. The IDT1893AF uses the same proven silicon as the IDT1893Y-10 but offers a lower cost solution by using a lower cost 300 mil. 48-lead SSOP package. The IDT1893AF uses the same twisted-pair transmit and receive circuits as the IDT1893Y-10, and the same recommended board layout

Download 1893AFLF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

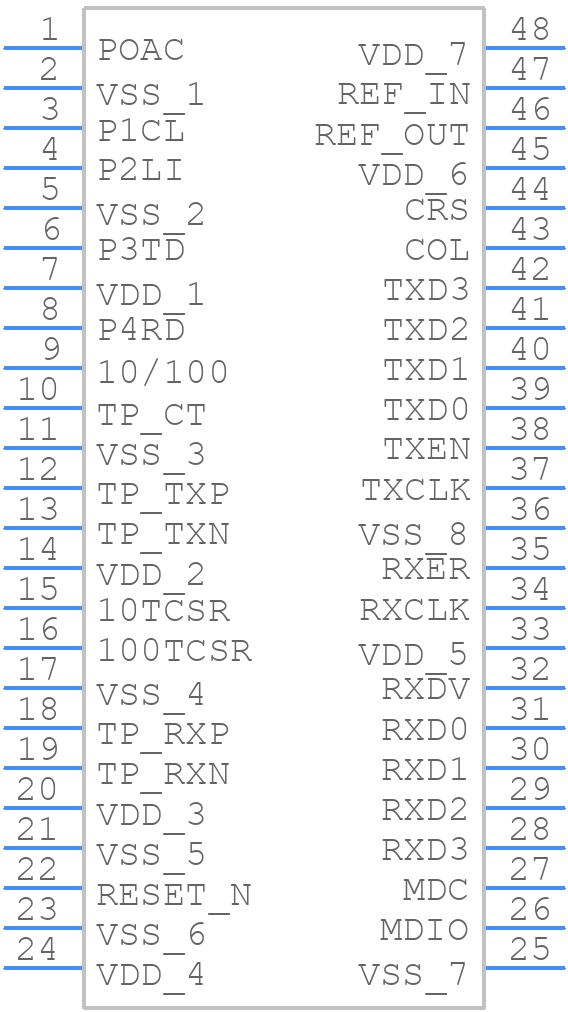

1893AFLF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

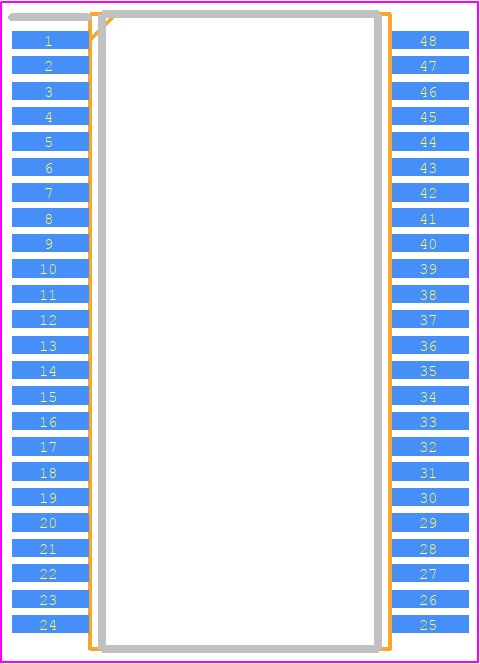

1893AFLF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 48-SSOP-2021
click to zoom
3D Models
1893AFLF - Renesas Electronics - 3D model - Small Outline Packages - 48-SSOP-2021
click to zoom

1893AFLF Details

  • Manufacturer Part Number:

    1893AFLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    48

  • Manufacturer Package Code:

    PVG48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    15.875 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP48,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    IEEE 802.3

  • Seated Height-Max:

    2.8 mm

  • Supply Current-Max:

    160 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

1893AFLF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-000001) which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device. The datasheet provides guidelines for selecting the appropriate overcurrent protection component.
  • Renesas recommends a power-up sequence of VCC, then VDD, and finally EN (enable) to ensure proper device operation and prevent latch-up. The datasheet provides a detailed power-up sequence diagram.
  • Renesas provides an I2C troubleshooting guide in their application note (APL-000002) which includes tips for debugging I2C communication issues, such as checking clock frequency, data line integrity, and slave address configuration.
  • The 1893AFLF has an operating temperature range of -40°C to 125°C, but Renesas recommends derating the device's performance at temperatures above 85°C to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1893AFLF Overview

Use the download button to access the 1893AFLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1893A, or try a keyword search, such as Network Interfaces
