Description:The IDT1893BF is a low-power, physical-layer device (PHY) that supports the ISO/IEC 10Base-T and 100Base-TX Carrier-Sense Multiple Access/Collision Detection (CSMA/CD) Ethernet standards, ISO/IEC 8802-3. The IDT1893BF is intended for MII, Node applications that require the Auto-MDIX feature that automatically corrects crossover errors in plant wiring. The IDT1893BF incorporates Digital-Signal Processing (DSP) control in its Physical-Medium Dependent (PMD) sub layer. As a result, it can transmit and receiv
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, copper pours, and other layout considerations to ensure optimal thermal performance.
Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The datasheet provides guidelines for selecting the current sense resistor value and the comparator threshold.
Renesas recommends using a low-ESR ceramic capacitor with a value between 4.7uF to 10uF, depending on the input voltage and frequency. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ripple.
Renesas provides EMC guidelines in their application notes, including recommendations for PCB layout, component selection, and shielding. Additionally, Renesas recommends following the IEC 61000-4-2 standard for electromagnetic immunity testing.
The 1893BFILFT has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Renesas recommends using thermal management techniques, such as heat sinks or thermal interfaces, to ensure the device operates within the specified temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1893BFILFT Overview

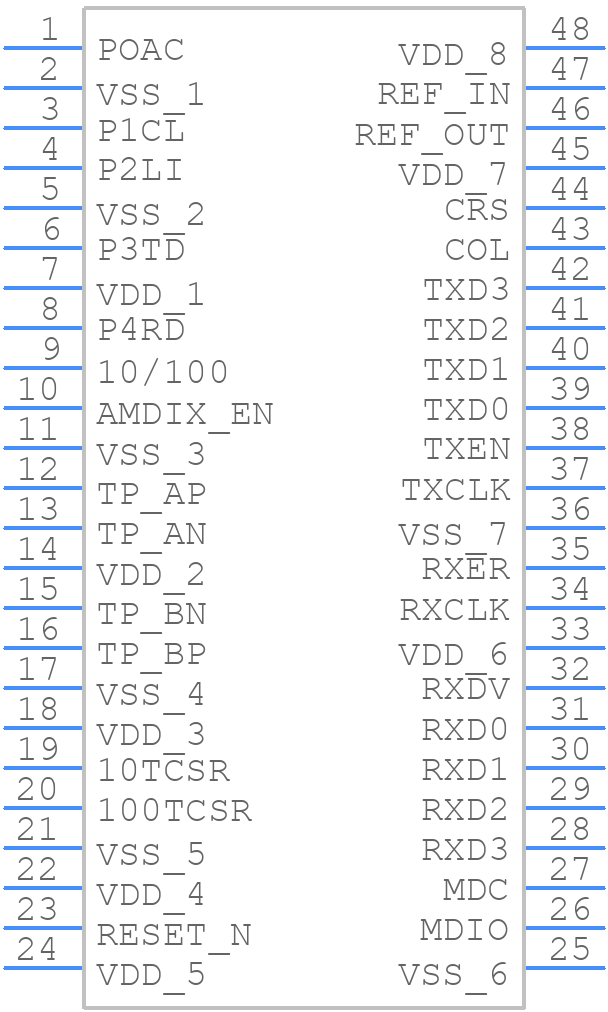

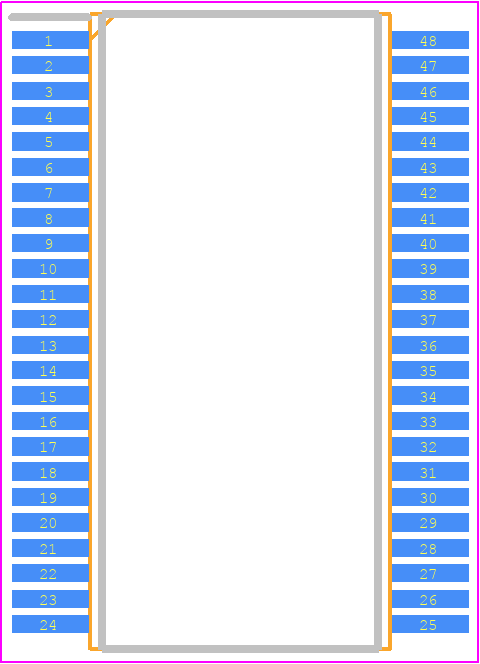

Use the download button to access the 1893BFILFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1893B,
or try a keyword search, such as Network Interfaces
