1894820 - Phoenix Contact

Description: MCD 0,5/ 4-G1-2,5 - PCB headers, nominal cross section: 0.5 mm<sup>2</sup>, color: green, nominal current: 4 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 8, number of rows: 2, number of positions: 4, number of connections: 8, product range: MCD 0,5/..-G1, pitch: 2.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.8 mm, number of solder pins per potential: 1, plug-in system: COMBICON FK-MC 0,5, Pin connector pattern alig

Download 1894820 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

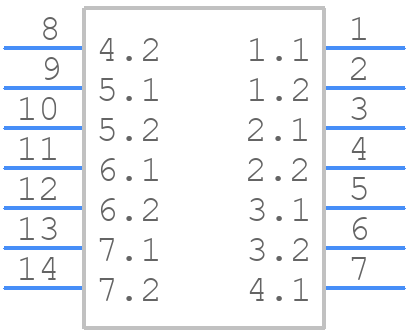

1894820 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

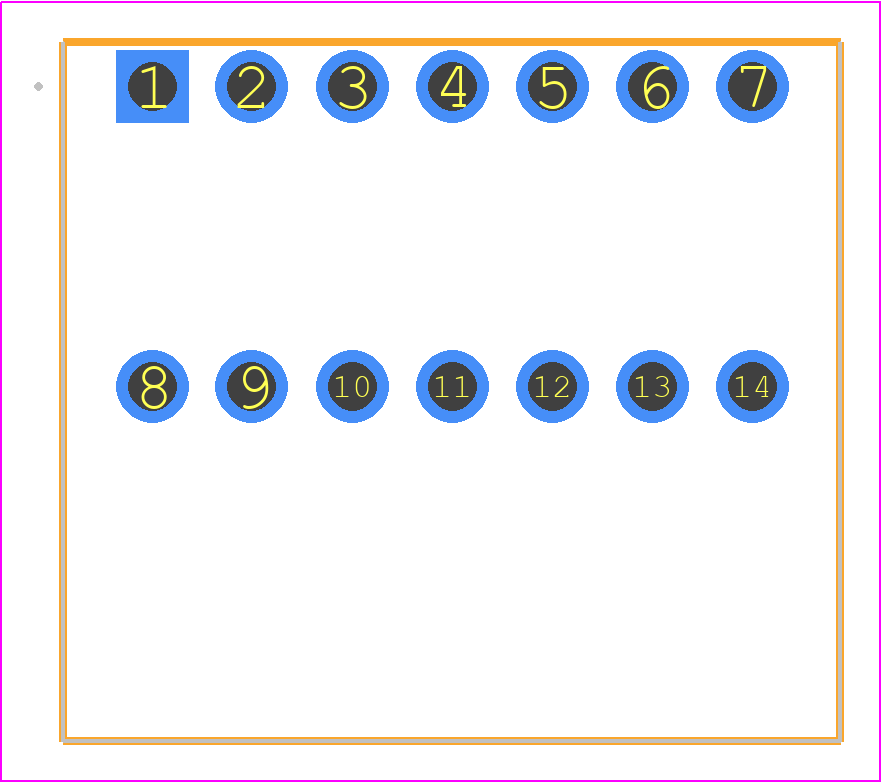

1894820 - Phoenix Contact PCB footprint - Other - Other - 1894820
click to zoom
3D Models
1894820 - Phoenix Contact - 3D model - Other - 1894820
click to zoom

1894820 Details

  • Manufacturer Part Number:

    1894820

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.65

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    4 A

  • Rated Voltage:

    80 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1894820 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and Phoenix Contact's application notes for precise guidance.
  • Yes, the 1894820 connector is designed to withstand vibrations and shocks according to IEC 61373 Category 2. However, it's crucial to ensure proper mounting and secure the connector to the PCB to maintain reliability.
  • To ensure reliable connections in high-temperature applications, make sure to follow Phoenix Contact's guidelines for temperature derating, and consider using thermal interface materials or heat sinks if necessary.
  • The 1894820 connector is designed to be compatible with other Phoenix Contact products, but compatibility with third-party components should be verified through testing and validation.
  • Follow Phoenix Contact's cleaning and maintenance guidelines, which typically involve using a soft brush, compressed air, or a gentle cleaning solution to remove contaminants and ensure reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1894820 Overview

Use the download button to access the 1894820 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18948, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
