1894862 - Phoenix Contact

Description: MCD 0,5/ 8-G1-2,5 - PCB headers, nominal cross section: 0.5 mm<sup>2</sup>, color: green, nominal current: 4 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 16, number of rows: 2, number of positions: 8, number of connections: 16, product range: MCD 0,5/..-G1, pitch: 2.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.8 mm, number of solder pins per potential: 1, plug-in system: COMBICON FK-MC 0,5, Pin connector pattern al

Download 1894862 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1894862 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

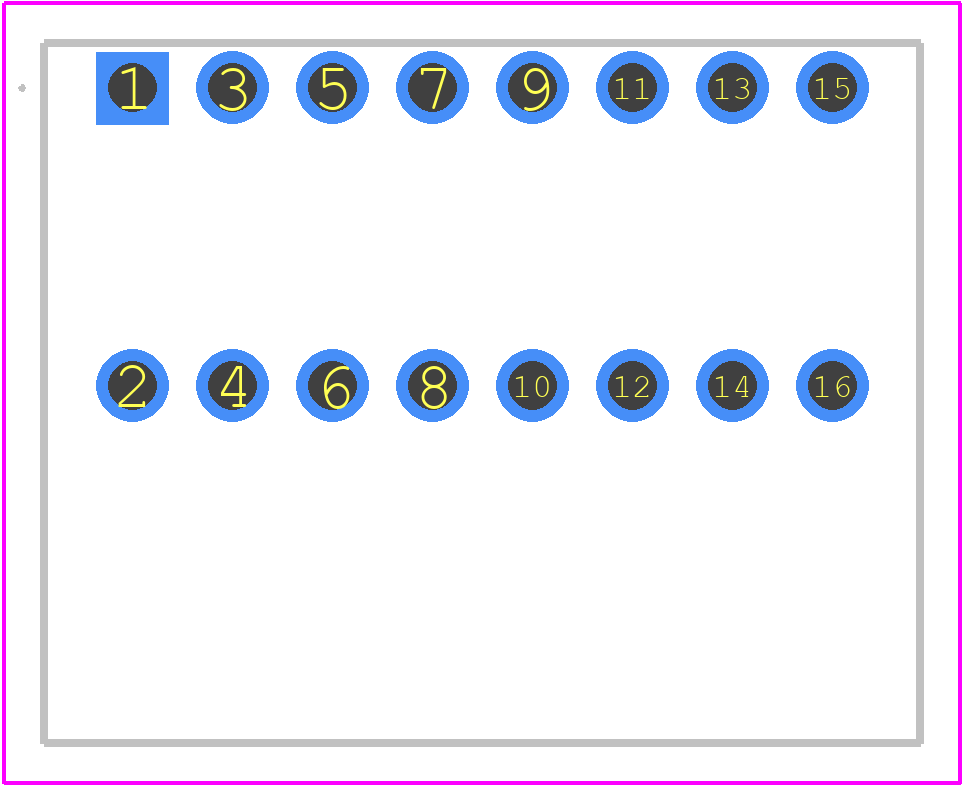

1894862 - Phoenix Contact PCB footprint - Other - Other - 1894862-2
click to zoom
3D Models
1894862 - Phoenix Contact - 3D model - Other - 1894862-2
click to zoom

1894862 Details

  • Manufacturer Part Number:

    1894862

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PA, 94V-0

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    4 A

  • Rated Voltage:

    80 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1894862 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact application notes.
  • Yes, the 1894862 connector is designed to withstand vibrations up to 10 g according to IEC 61373, making it suitable for high-vibration applications.
  • The 1894862 connector is designed to be compatible with other manufacturers' connectors that meet the IEC 61076-2-101 standard, but compatibility should be verified before use.
  • The 1894862 connector is rated for operation in temperatures ranging from -40°C to 125°C, making it suitable for use in a wide range of applications.
  • The 1894862 connector has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes, making it suitable for use in humid or wet environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1894862 Overview

Use the download button to access the 1894862 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18948, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
