1894K-40LFT - Renesas Electronics

Description: The IDT1894-40 is a low-power, physical-layer device (PHY) that supports the ISO/IEC 10Base-T and 100Base-TX Carrier-Sense Multiple Access/Collision Detection (CSMA/CD) Ethernet standards, ISO/IEC 8802-3. The IDT1894-40 is intended for MII, Node applications that require the Auto-MDIX feature that automatically corrects crossover errors in plant wiring. The IDT1894-40 incorporates Digital-Signal Processing (DSP) control in its Physical-Medium Dependent (PMD) sub layer. As a result, it can transmit and recei

Download 1894K-40LFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

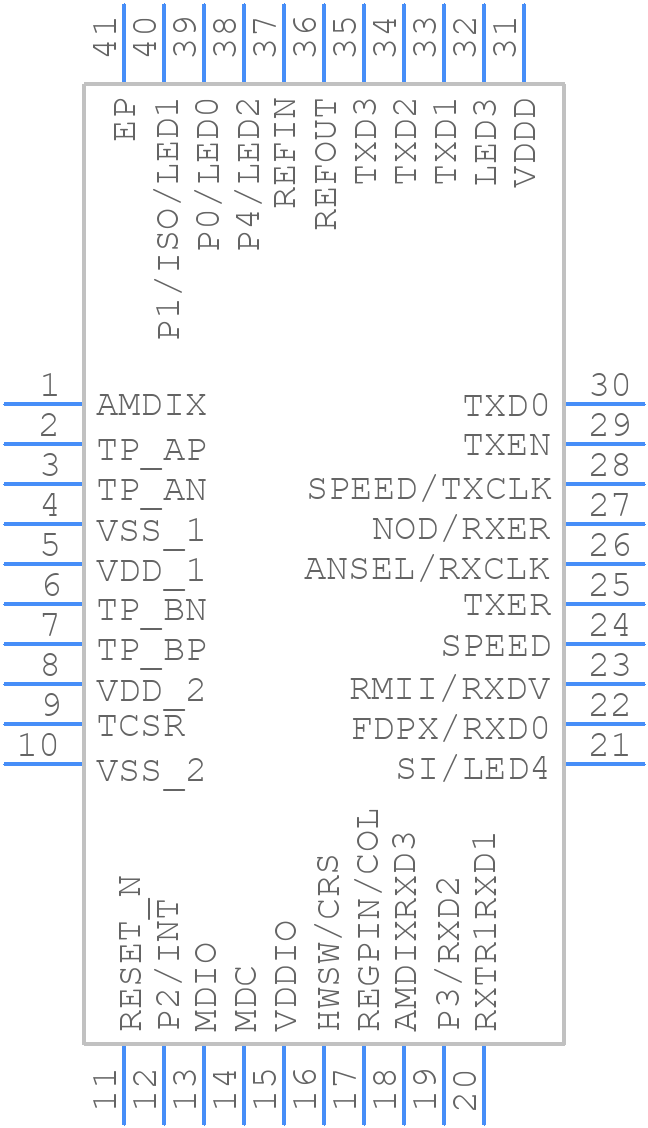

1894K-40LFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
1894K-40LFT - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-pin 6mm x 6mm QFN-1
click to zoom
3D Models
1894K-40LFT - Renesas Electronics - 3D model - Quad Flat No-Lead - 40-pin 6mm x 6mm QFN-1
click to zoom

1894K-40LFT Details

  • Manufacturer Part Number:

    1894K-40LFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    40

  • Manufacturer Package Code:

    NLG40P1

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    IEEE 802.3; IEEE 802.3u

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

1894K-40LFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AP61104) for the 1894K-40LFT, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device in case of an overcurrent event. The datasheet provides guidelines for selecting the appropriate protection components.
  • Renesas recommends a specific power-up sequence to ensure proper device operation and prevent latch-up. The recommended sequence is: VCC, then VDD, and finally the input signals. The datasheet provides more detailed information on the power-up sequence.
  • Renesas recommends implementing ESD protection measures, such as using ESD protection diodes or TVS diodes, to prevent damage to the device from electrostatic discharge. The datasheet provides guidelines for selecting the appropriate ESD protection components.
  • The 1894K-40LFT has an operating temperature range of -40°C to +125°C, but Renesas recommends derating the device's performance at temperatures above 85°C to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1894K-40LFT Overview

Use the download button to access the 1894K-40LFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1894K, or try a keyword search, such as Network Interfaces
