1899087 - Phoenix Contact

Description: DFK-MSTBA 2,5/12-GF-5,08 - Feed-through header, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 12, product range: DFK-MSTBA 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5,

Download 1899087 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1899087 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

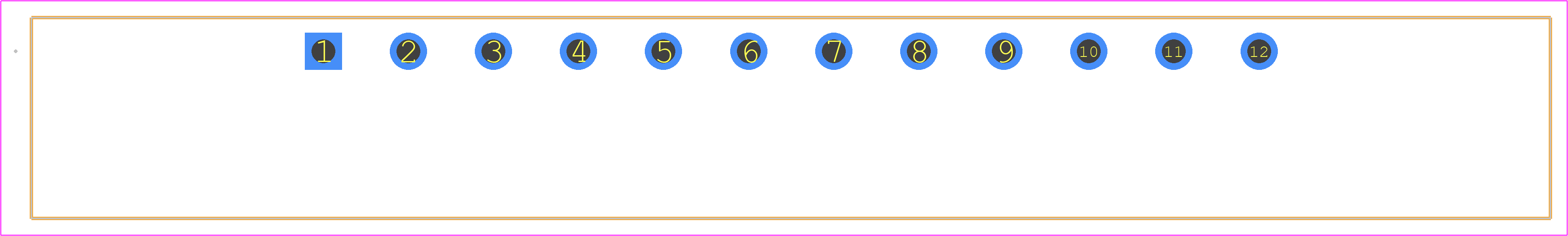

1899087 - Phoenix Contact PCB footprint - Other - Other - 1899087
click to zoom
3D Models
1899087 - Phoenix Contact - 3D model - Other - 1899087
click to zoom

1899087 Details

  • Manufacturer Part Number:

    1899087

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PBT, 94V-0

  • Mounting Type:

    BOARD AND PANEL

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1899087 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1899087 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific requirements of your application.
  • The 1899087 connector has a IP20 rating, which means it's not suitable for outdoor use or exposure to water. If you need a connector for outdoor use, consider using a connector with a higher IP rating, such as IP67 or IP69K.
  • It's not recommended to use the 1899087 connector with aluminum wires, as the connector is designed for copper wires. Using aluminum wires may lead to corrosion and reduced connector performance.
  • The 1899087 connector has a maximum operating temperature of 125°C (257°F) according to the datasheet. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific temperature requirements of your application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1899087 Overview

Use the download button to access the 1899087 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18990, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
