1899100 - Phoenix Contact

Description: DFK-MSTBA 2,5/14-GF-5,08 - Feed-through header, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 14, number of rows: 1, number of positions: 14, number of connections: 14, product range: DFK-MSTBA 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5,

Download 1899100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1899100 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

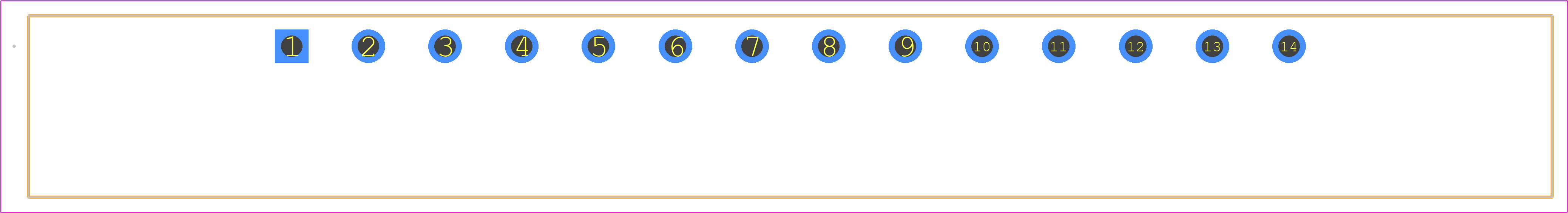

1899100 - Phoenix Contact PCB footprint - Other - Other - 1899100
click to zoom
3D Models
1899100 - Phoenix Contact - 3D model - Other - 1899100
click to zoom

1899100 Details

  • Manufacturer Part Number:

    1899100

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.65

  • Additional Feature:

    PBT, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD AND PANEL

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    14

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    13 AWG

1899100 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact's general technical guidelines.
  • Yes, the 1899100 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • The 1899100 connector has a protection rating of IP67, which means it is protected against dust and temporary immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional protection measures for outdoor use or exposure to harsh environmental conditions.
  • While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge. However, it's essential to ensure that the wire gauge meets the connector's minimum and maximum wire size specifications to ensure reliable connections.
  • To ensure proper mating and unmating, follow the recommended mating and unmating forces specified in the datasheet, and ensure that the connector is properly aligned and seated.
