1899142 - Phoenix Contact

Description: DFK-MSTBVA 2,5/ 3-G-5,08 - Feed-through header, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: DFK-MSTBVA 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin

Download 1899142 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1899142 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

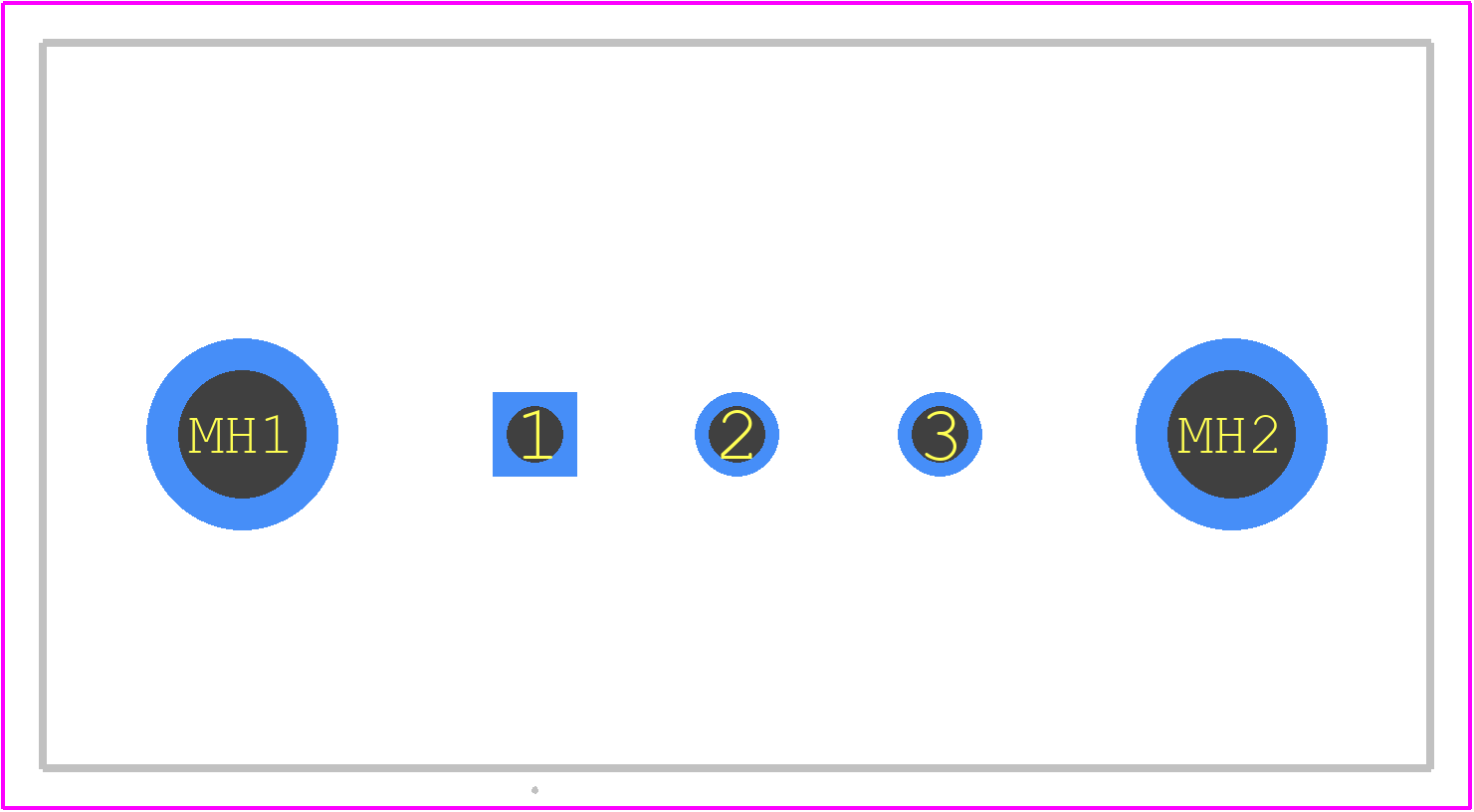

1899142 - Phoenix Contact PCB footprint - Other - Other - 1899142-1
click to zoom
3D Models
1899142 - Phoenix Contact - 3D model - Other - 1899142-1
click to zoom

1899142 Details

  • Manufacturer Part Number:

    1899142

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.65

  • Additional Feature:

    PBT, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD AND PANEL

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    13 AWG

1899142 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the installation instructions and follow the recommended torque to ensure a secure connection.
  • Yes, the 1899142 connector is designed to withstand vibrations and shocks. It meets the requirements of IEC 61373 Category 2, which means it can operate in environments with vibrations up to 15 g (IEC 61373-1) and shocks up to 30 g (IEC 61373-2). However, it's crucial to ensure proper installation and secure fastening to maintain the connector's integrity.
  • The 1899142 connector has a protection rating of IP67, which means it can withstand temporary immersion in water (up to 1 meter for 30 minutes) and is protected against dust ingress. However, it's not designed for continuous outdoor use or exposure to extreme temperatures, chemicals, or UV radiation. If you need a connector for outdoor use, consider using a connector with a higher IP rating or additional protection measures.
  • While it's technically possible to use a different wire gauge or type, it's not recommended. The 1899142 connector is designed to work with specific wire gauges and types, as specified in the datasheet. Using a different wire gauge or type may compromise the connector's performance, reliability, and safety. If you need to use a different wire gauge or type, consult with Phoenix Contact or a qualified engineer to ensure the connector's integrity.
  • To ensure proper wire stripping and termination, follow the recommended wire stripping length and termination procedures outlined in the datasheet or installation instructions. Use a wire stripper that is compatible with the wire gauge and type, and ensure the wire is properly seated in the connector's contacts. Improper wire stripping or termination can lead to connector failure or electrical issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1899142 Overview

Use the download button to access the 1899142 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18991, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
