1899294 - Phoenix Contact

Description: DFK-MSTBVA 2,5/ 3-GF-5,08 - Feed-through header, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: DFK-MSTBVA 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pi

Download 1899294 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1899294 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

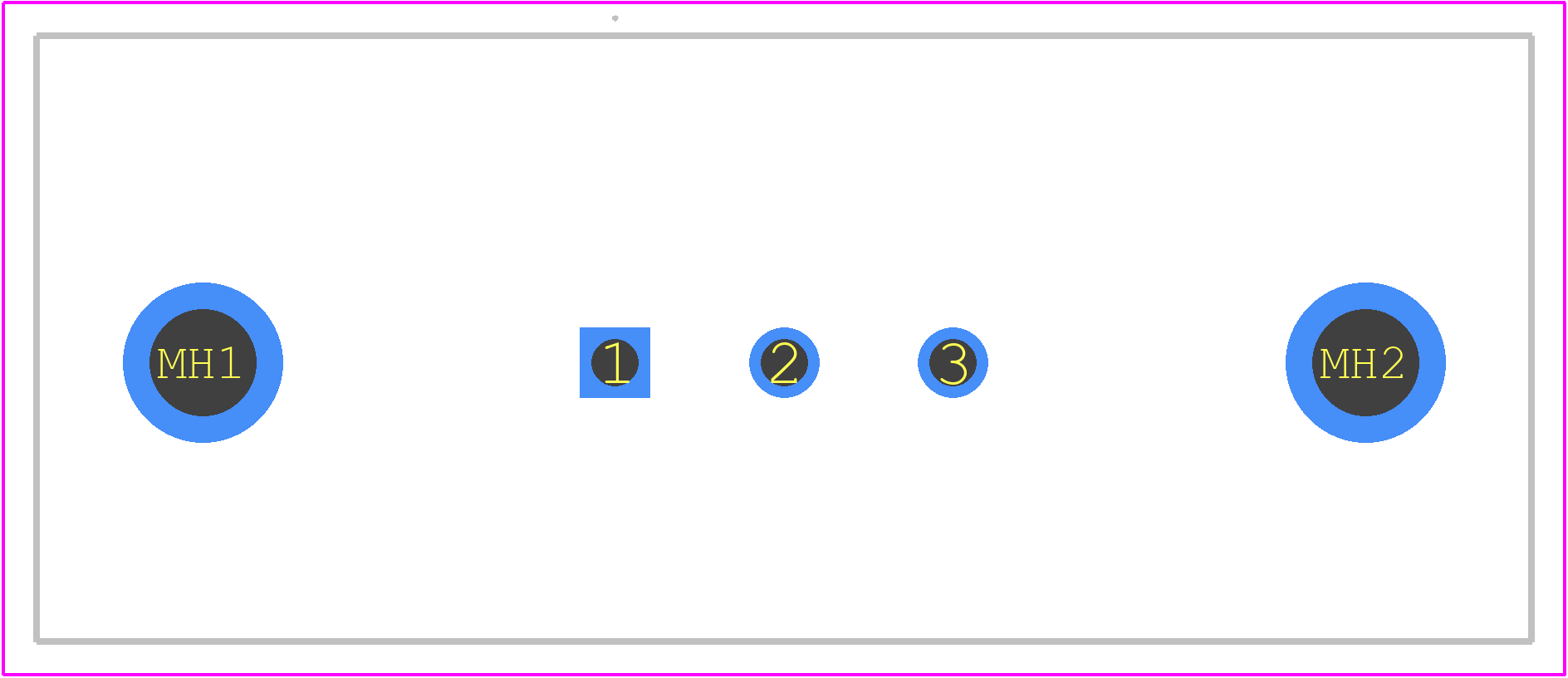

1899294 - Phoenix Contact PCB footprint - Other - Other - 1899294
click to zoom
3D Models
1899294 - Phoenix Contact - 3D model - Other - 1899294
click to zoom

1899294 Details

  • Manufacturer Part Number:

    1899294

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PBT, UL 94V0

  • Fastening Method:

    SCREW

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    13 AWG

1899294 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, but it's essential to consult the specific panel's instructions as well.
  • Yes, the 1899294 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure wiring to prevent damage.
  • The 1899294 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's essential to follow proper installation and sealing guidelines to maintain the IP67 rating.
  • Yes, the 1899294 connector is designed to be compatible with other Phoenix Contact products and some third-party components. However, it's essential to verify compatibility before integrating with other components.
  • The 1899294 connector has an operating temperature range of -40°C to 125°C. However, it's crucial to consider the specific application and environmental conditions to ensure reliable operation.
